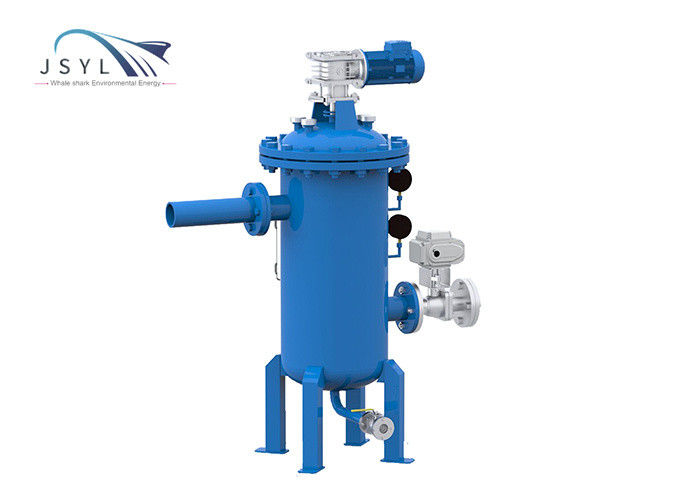

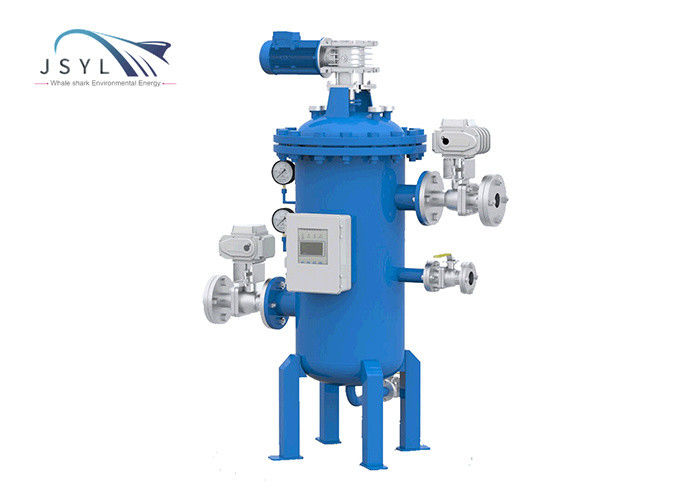

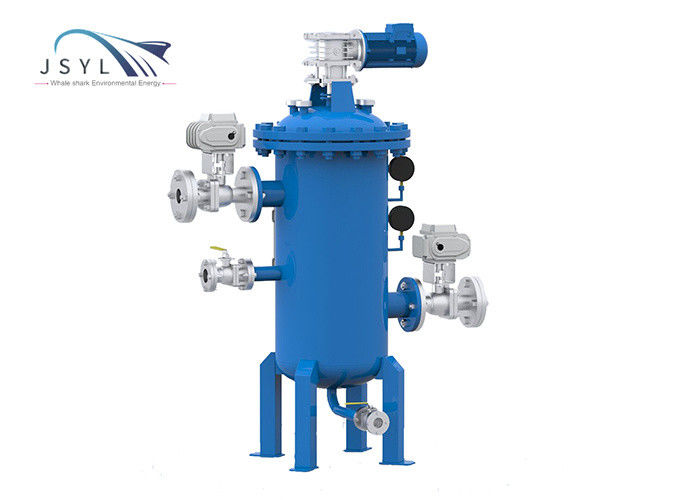

DN500 380V 50Hz Self Cleaning Purifier For Water Circulating System

JSYL series automatic self-cleaning filter for circulating water system


Describe

The automatic self-cleaning filter is highly efficient and automatically backwashed. It can realize online automatic cleaning, automatic sewage discharge function, operation with three functions of differential pressure/timing/manual, and provide stable water quality guarantee for your water system. The filter continues to run during the flushing process, and a small amount of water is used during the flushing process, which makes the filter very efficient.

Working principle

The liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, the impurities in the liquid are deposited on the stainless steel filter screen, when the inlet pressure and outlet pressure reach the set value; the system automatically starts the self-cleaning program; the sensor sends the information It is sent to the power distribution system, and the power distribution system receives the pressure signal to trigger: the electric motor drives the brush to rotate to clean the filter element; at the same time, the sewage valve opens to discharge the sewage; the cleaning time is 10-60 seconds (settable) seconds, and the valve closes when the cleaning ends; The motor stops running; the system returns to the initial state; it begins to enter the next filtration process.

Features
1: The filter element assembly is easy to disassemble, replace and maintain.
2: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
3: Fully automatic intelligent control can be remote.
4: Motor forward and reverse automatically switch
