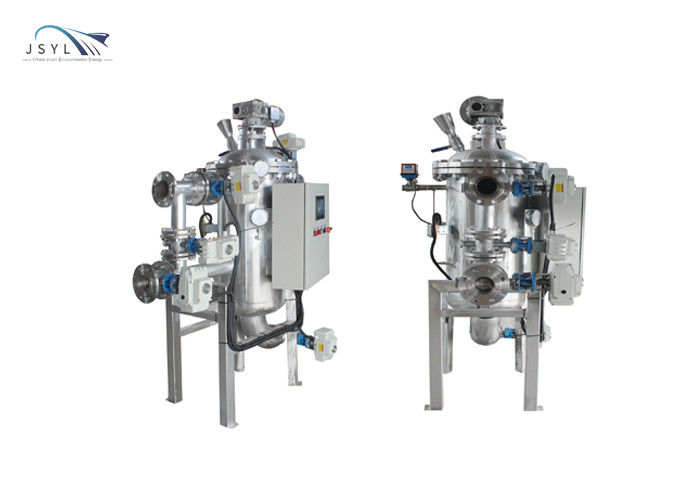

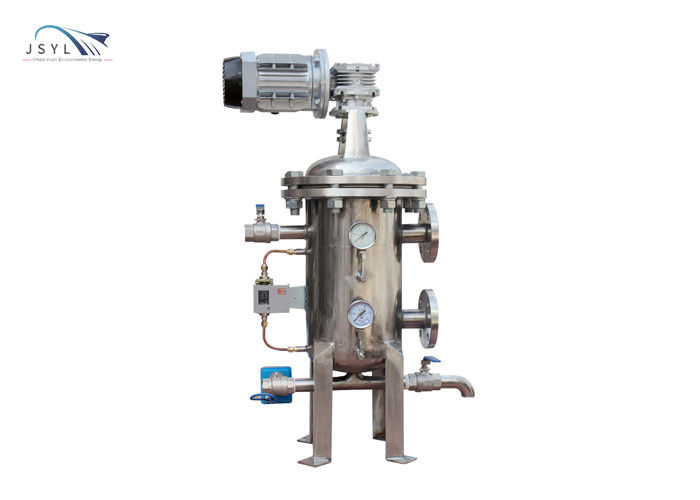

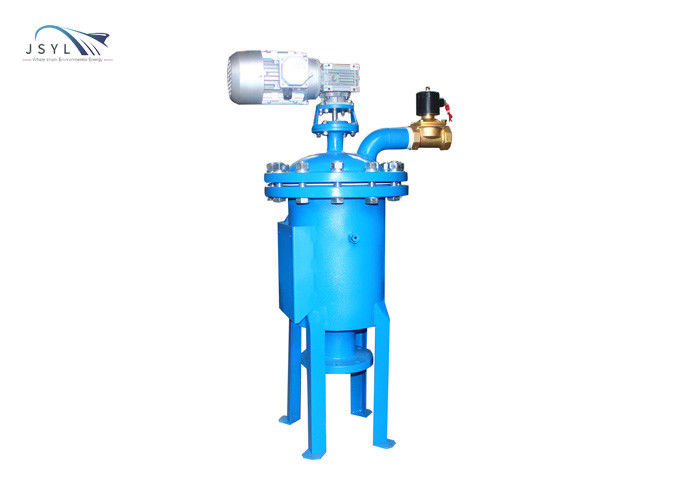

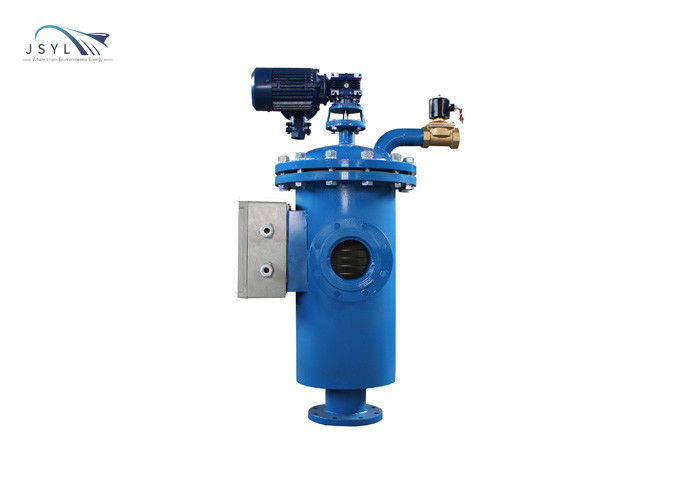

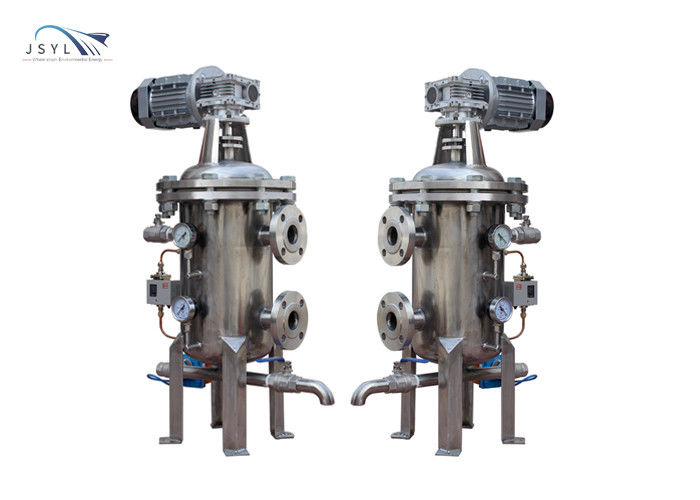

Large Flow High Performance Self Cleaning Strainer 100um-3000um Filtration Accuracy

Large flow high performance self-cleaning filter


Describe

Use the filter to directly intercept impurities in the water, remove suspended solids and particles in the water, reduce liquid turbidity, purify water, reduce system dirt, bacteria, algae, rust, etc., keep materials clean, and protect downstream production equipment from impurities in the liquid Blockage damage can operate normally. The automatic intelligent control can be remote, the motor is automatically switched between forward and reverse, and the cleaning is more thorough, to prevent the deformation of the brush caused by metal fatigue, and the phenomenon of non-returning. At the same time, the manual intake valve and drain valve are newly added. When the equipment stops When working, it can be manually operated to remove the sewage inside the equipment and maintain the equipment. It is a multi-functional high-efficiency decontamination filter.

Working principle

The liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, the impurities in the liquid are deposited on the stainless steel filter screen, when the inlet pressure and outlet pressure reach the set value; the system automatically starts the self-cleaning program; the sensor sends the information It is sent to the power distribution system, and the power distribution system receives the pressure signal to trigger: the electric motor drives the brush to rotate to clean the filter element; at the same time, the sewage valve opens to discharge the sewage; the cleaning time is 10-60 seconds (settable) seconds, and the valve closes when the cleaning ends; The motor stops running; the system returns to the initial state; it begins to enter the next filtration process.

Features

1: Large flow; small volume; large filter area
3: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
4: Filter element assembly, easy to disassemble, easy to replace, easy to maintain.
5: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
6: Fully automatic intelligent control can be remote.
7: The motor is automatically switched between forward and reverse
8: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually
