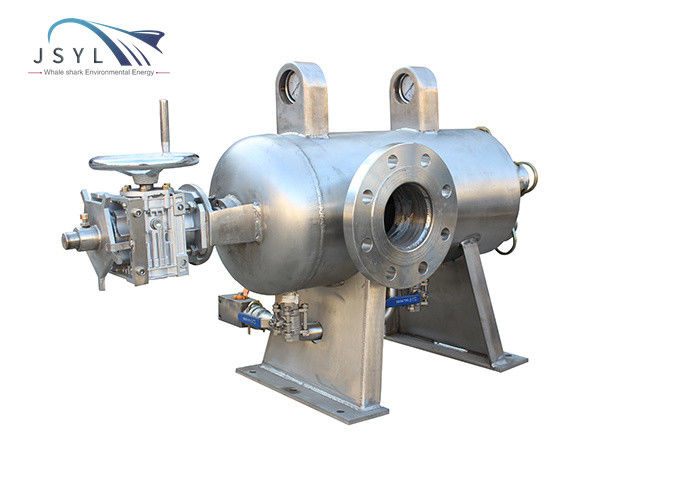

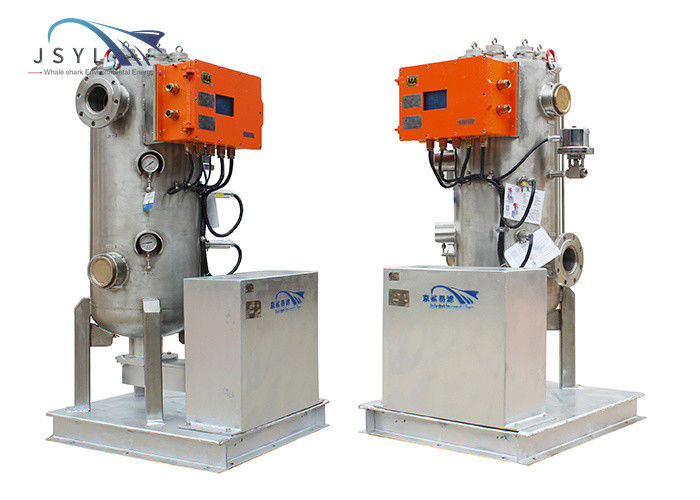

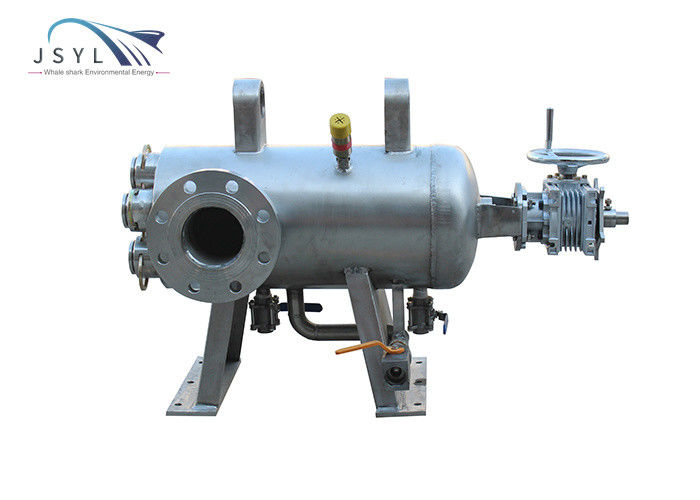

304 material clean water backwash filter station
Introduce:
JSYL clean water filter station uses the filter to directly intercept the solid particles in the liquid medium, reduce the turbidity of the liquid medium, purify the liquid, and prevent the solid particles from entering the liquid medium; reduce the generation of system fouling, and keep the liquid medium clean to meet system operation and The requirements for liquid cleanliness in the next process can also be used to protect key downstream equipment from particle blockage, wear or fouling, improve the operating efficiency and service life of key equipment, and ensure the safe operation of the system;
Advantage:
1. Small size, large flow, high precision
2. High pressure resistance; can withstand 2-8 pressure
3. The filter element adopts a horn-shaped design to clean more thoroughly
4. Intelligent online backwash without stopping and continuous flow
5. The body replaces the filter element, quick-plug design; easy to replace
6. One machine for multiple purposes; precision can be adjusted
7. It can be installed vertically or horizontally, saving installation space
PRODUCT PARAMETER | |||
Specifications | Equipment parameters | Specifications | Equipment parameters |
Equipment model | JSYL-QDX-KJ102/KJ126 (double in and double out) | Cleaning method |
The equipment itself backwashes the filter element |
Shell selection | 304 material | Filter element form | 304 stainless steel sintered inverted mesh (high pressure filter element) |
Single machine flow |
1000L/Min/2000L/Min
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
Rated pressure | 1.6-5.0MPa | Filter accuracy | 25 microns |
Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | -20-50°C |
Operation mode | Fully automatic intelligent control/manual control | Filter element replacement | The body can replace the filter element in 15 minutes |
Pressure gauge
|
Seismic pressure gauge | Installation method | vertical/horizontal |
Applicable fields:
It is mainly used to filter the emulsion of hydraulic support underground in coal mines, filter out metal particles and rubber impurities of seals in the hydraulic system, and keep the liquid flowing back to the tank clean.
