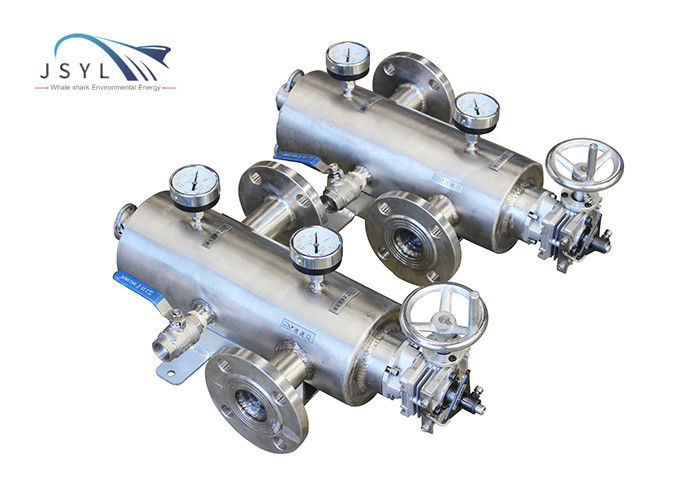

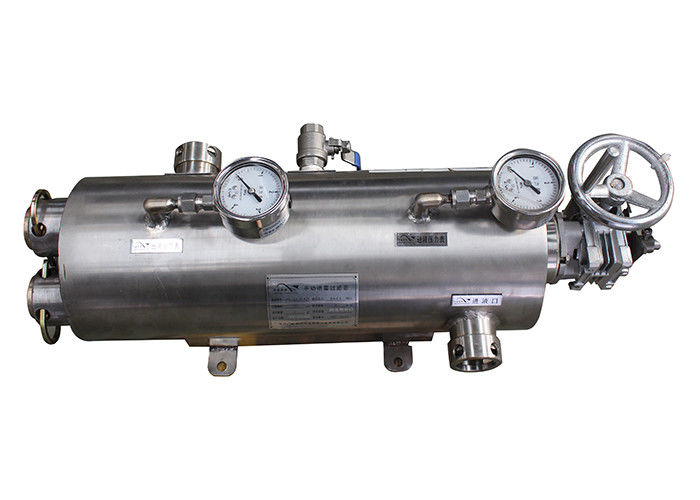

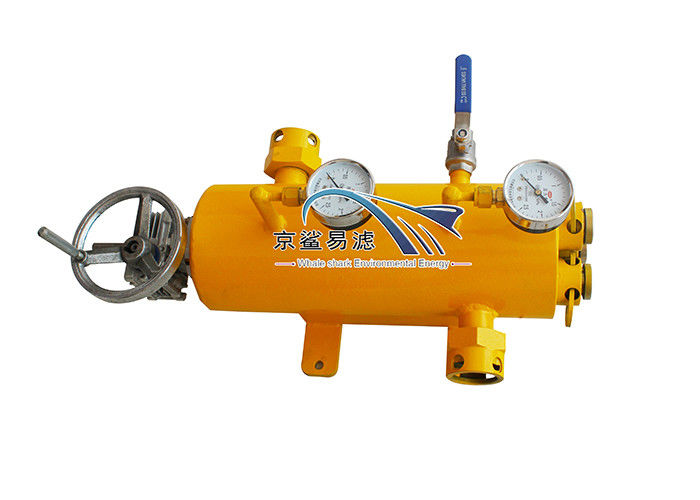

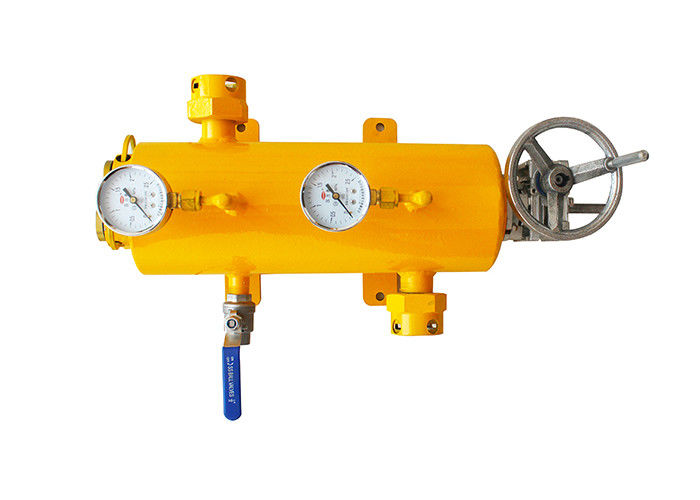

Special filter for manual spraying for mine
Introduce:
The manual multi-element spray filter is a new generation filter with backwashing function. It can filter continuously for 24 hours. When the filter element is blocked, the filter element is backwashed one by one by rotating the rotating arm. The filter adopts extremely durable wedge-shaped wire gap type/multi-layer woven mesh sintered filter element, the filter accuracy range is 50-200 microns, the inlet and outlet size is DN25/KJ25/DN50, the single filter area is large, and it is 3- 5 times; high reliability, capable of handling poorer water quality.
Applicable scope/field:
Mainly used for coal caving mouths, scrapers, belt conveyors, transfer points, coal working faces, air intake and return airways, driving roadways, main air intake roadways and air intake inclined shafts for dust prevention, fog reduction, and dust reduction On the branch pipe of the curtain.
PRODUCT PARAMETER | |||
Specifications | Equipment parameters | Specifications | Equipment parameters |
Equipment model | JSYL-QDX-SD-KJ25/DN50 | Working pressure |
1.6MPa/2.5MPa/4.0MPa |
Shell selection | carbon steel/stainless steel | Filter element form | stainless steel sintered mesh |
Single machine flow |
3.8m³/h
|
Number of filter elements |
3 (Quick plug-in design for filter element replacement)
|
Rated pressure | 1.6MPa | Filter accuracy | 100 microns |
Applicable viscosity (cp) | 1-40cp |
Applicable temperature (°C) |
-20-200°C |
Operation mode |
manual mechanical operation |
Filter element replacement | body replacement |
Backwashing components
|
304 stainless steel | Power unit | manual reducer |
Features:
1. The number of filter elements is 3;
2. Continuous online filtration, uninterrupted flow during backwashing;
3. Compact design, large filtering area, low recoil frequency, saving recoil water;
4. High-strength structure, more than 10 years of service life
5. Highly integrated, connectors, seals, high reliability, low operation and maintenance costs
