Mine pipeline filter station
Introduce:
JSYL clean water filter station uses the filter to directly intercept the solid particles in the liquid medium, reduce the turbidity of the liquid medium, purify the liquid, and prevent solid particles from entering the liquid medium; reduce the generation of system fouling, and keep the liquid medium clean to meet system operation and The requirements for liquid cleanliness in the next process can also be used to protect key downstream equipment from particle blockage, wear or fouling, improve the operating efficiency and service life of key equipment, and ensure the safe operation of the system;
Working principle:
The same device can achieve three filtration precisions of coarse, medium and fine. The liquid enters the body through the inlet for filtration; impurities are deposited on the stainless steel filter screen, when the inlet pressure and outlet pressure reach the preset value; the intelligent control system starts operation; The precision filter element performs online backwashing; the backwashing node plate rotates 360 degrees; the online backwashing can be completed in 20 seconds, and the online backwashing will continue to flow without stopping the machine.
PRODUCT PARAMETER | |||
Specifications | Equipment parameters | Specifications | Equipment parameters |

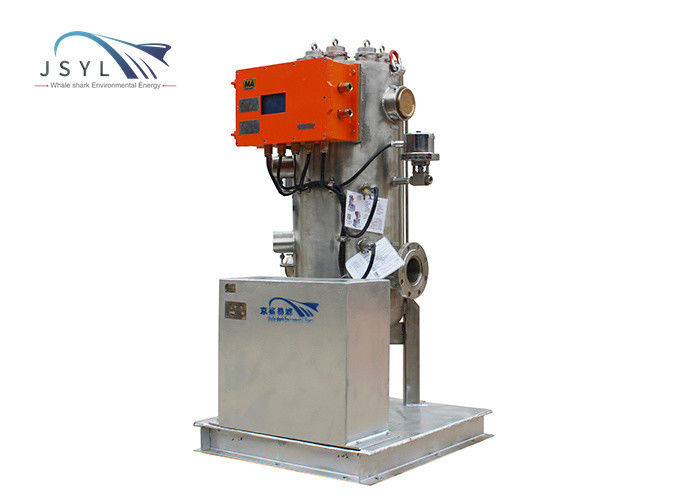

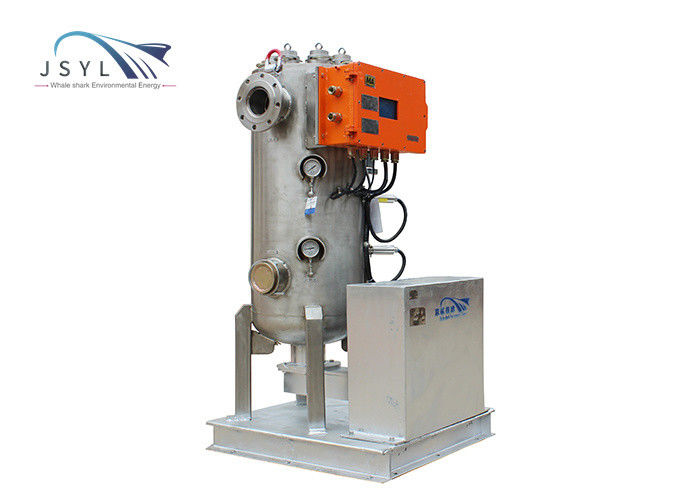

Equipment model | JSYL-QDX-KJ102/KJ126 (Double in and double out) |
Single machine flow |
1000L/Min/2000L/Min |
Shell selection | carbon steel/304 | Rated pressure | 1.6-5.0MPa |
Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
Filter element specification | JSYL-GL-25-600-φ110 | Filtration accuracy | 25μm/40μm/60μm |
Pressure gauge | Seismic pressure gauge | Filler replenishment cycle | Replenish once every three months/half a year |
Operation mode |
automatic intelligent control manual control |
Filter element design | Quick plug-in installation |
Equipment power supply
|

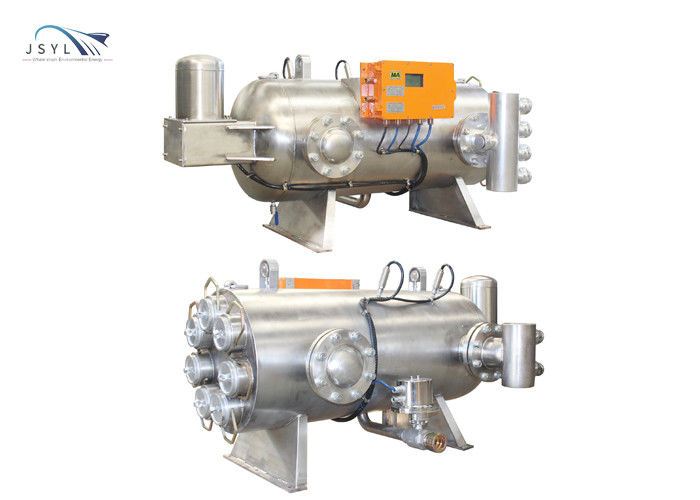

Voltage 127V | Installation method | vertical/horizontal |
Features:
1. Small size, large flow, high precision
2. High pressure resistance; can withstand 2-8 pressure
3. The filter element adopts a horn-shaped design to clean more thoroughly
4. Intelligent online backwash without stopping and continuous flow
5. The body replaces the filter element, quick-plug design; easy to replace
6. One machine for multiple purposes; precision can be adjusted
7. It can be installed vertically or horizontally, saving installation space
