Sintered Wire Manual Backwash Filter
,20 Micron Manual Backwash Filter
,DN100 backflush filter system
-
Product NameSintered Wire Mesh Filter
-
OriginHebei China
-
Applicable IndustriesPower Plants, Steel Mills, Paper Industry, Industry, Chemical Industry, Food And Water Industry
-
MaterialSintered Mesh
-
Core ComponentsBackwash Filter
-
UsageLiquid Filter
-
Filter Media304 Stainless Steel Sintered Wire Mesh
-
Installation MethodVertical Or Horizontal
-
Filter Rating100
-
SizeCustom Production
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

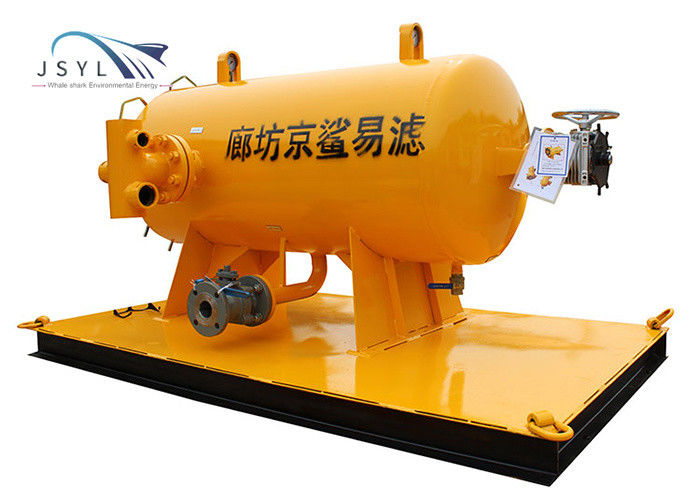

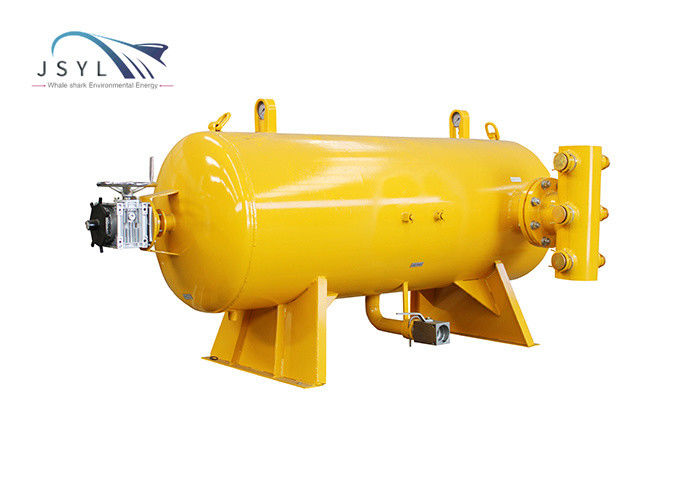

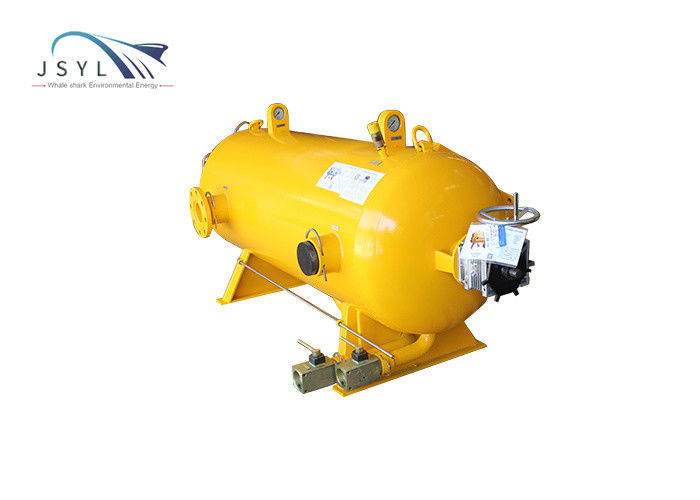

DN100 20 Micron Sintered Wire Manual Backwash Filter System
20 micron sintered wire manual backwash filter
Describe:
JSYL series equipment can filter out solid particles in various water and low-viscosity liquids (such as machined coolants), reduce liquid turbidity, purify water quality, reduce system dirt, bacteria, algae, rust, etc., and keep materials clean. In order to meet the requirements of system operation and downstream processes for liquid cleanliness, it can also be used to protect downstream key equipment from particle blockage, abrasion or fouling, and improve the operating efficiency and life of key equipment.
Features:
1. Small size, large flow, high precision
2. Intelligent online backwash without stopping and continuous flow;
3. The body replaces the filter element, quick-plug design, easy to replace;
4. Multi-filter element structure; precision can be adjusted;
5. It can be installed vertically/horizontally, which significantly saves installation space
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model | JSYL-JDX-SD-DN100 | Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
60m3/h
|
Number of filter elements |
7 elements
|
| Rated pressure | 2.5MPa | Filtration accuracy | 20 μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Manual mechanical operation | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | vertical/horizontal |
Applicable industry:
Circulating water filtration, reclaimed water reuse, advanced wastewater treatment filtration, central air conditioning, boiler backwater filtration, groundwater, surface water, swimming pools, landscape water purification The breeding water is filtered.
