High Light
Sintered Wire Mesh Filter 800m3/H
,2.5MPa Sintered Wire Mesh Filter
,Explosion Proof auto backflush filter
-
Product NameSintered Wire Mesh Filter
-
OriginHebei China
-
Applicable IndustriesPower Plants, Steel Mills, Paper Industry, Industry, Chemical Industry, Food And Water Industry
-
MaterialSintered Mesh
-
Core ComponentsBackwash Filter
-
UsageLiquid Filter
-
Filter Media304 Stainless Steel Sintered Wire Mesh
-
Installation MethodVertical Or Horizontal
-
Filter Rating100
-
SizeCustom Production
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

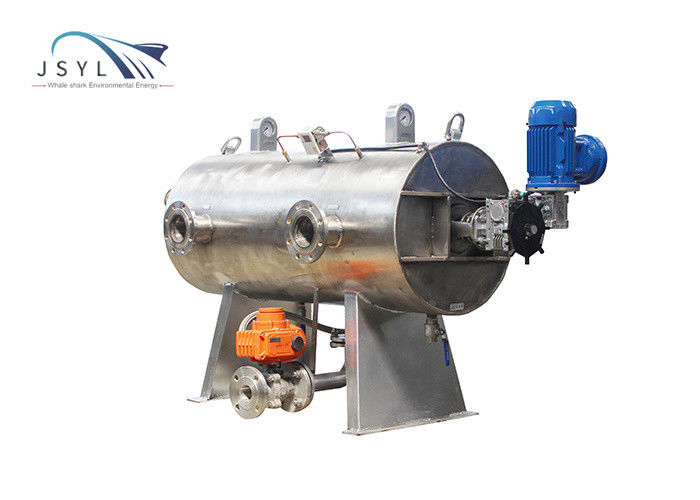

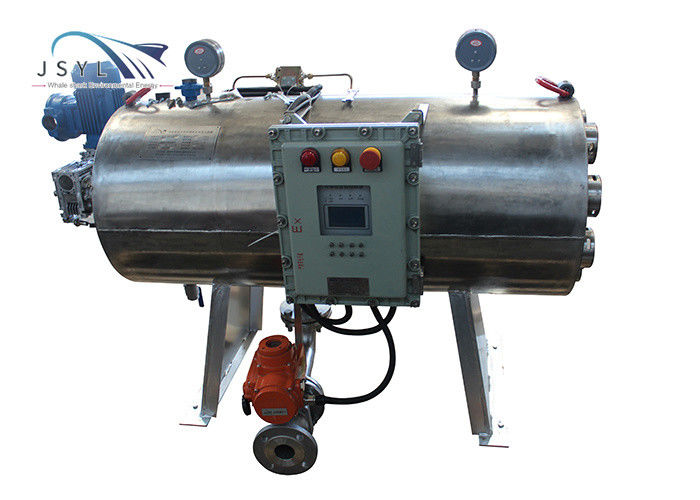

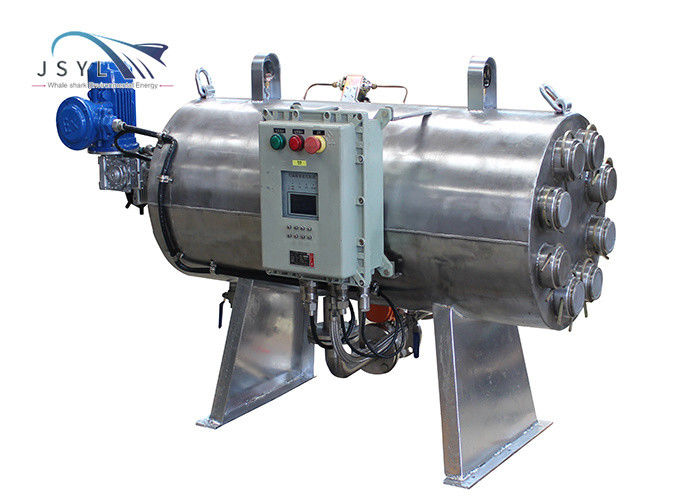

Explosion Proof Automatic Sintered Wire Mesh Filter 800m3/H
BT4 explosion-proof precision automatic sintered mesh filter element
Describe:
The JSYL series multi-element filter has the characteristics of backwashing and filtering. The machine continuously filters 24 hours a day. Downtime costs, maintenance costs and labor costs are advanced solutions for water and aqueous liquid filtration.
Features:
1. Small size, large flow, high precision
2. Intelligent online backwash without stopping and continuous flow;
3. The body replaces the filter element, quick-plug design, easy to replace;
4. Multi-filter element structure; precision can be adjusted;
5. It can be installed vertically/horizontally, which significantly saves installation space
6. Explosion-proof intelligent control.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model |
JSYL-JDX-ZD-DN(25-800) |
Cleaning method | Equipment's own filter element backwash |
| Shell selection | Carbon steel/stainless steel | Filter element form | Multi-layer woven mesh sintered |
| Single machine flow |
3-800 m3/h
|
Number of filter elements |
7 elements
|
| Rated pressure |
1.6MPa/2.5MPa/4.0MPa |
Filtration accuracy | 10-200 μm |
| Applicable viscosity (cp) | 1-40cp | Applicable temperature (°C) | 0-95°C |
| Operation mode | Manual mechanical operation | Filter element replacement | Large cover flange replacement filter element |
|
Backwashing components
|
304 stainless steel | Filter element design | Cover replacement |
| Power unit | Compound reducer | Position proximity switch | Inductive |
| Backflushing node | Seven-star node disk | Pressure gauge | Seismic pressure gauge |
| Filter replacement cycle | Half a year/more than one year | Installation method | vertical/horizontal |
Applicable industry:
Construction circulating water treatment, industrial circulating water treatment, sewage treatment, mining industry water treatment, golf course water treatment, construction, steel, petroleum, chemical, electronics, power generation, textile, paper, food, sugar, pharmaceutical, plastic, automotive industries And other fields.
Our products are sold all over the world, you can rest assured.
