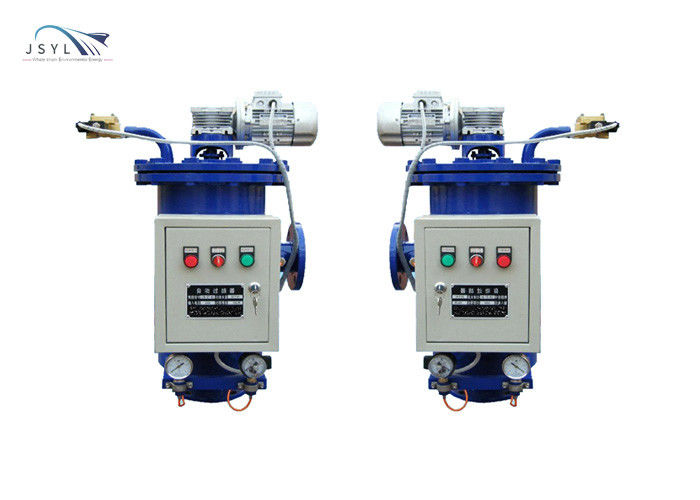

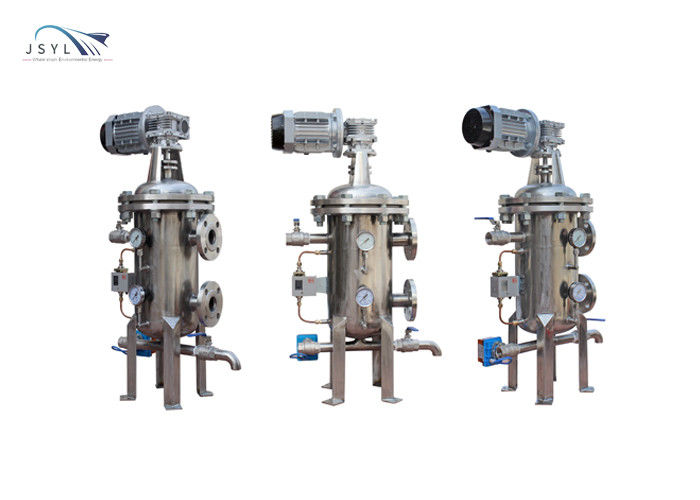

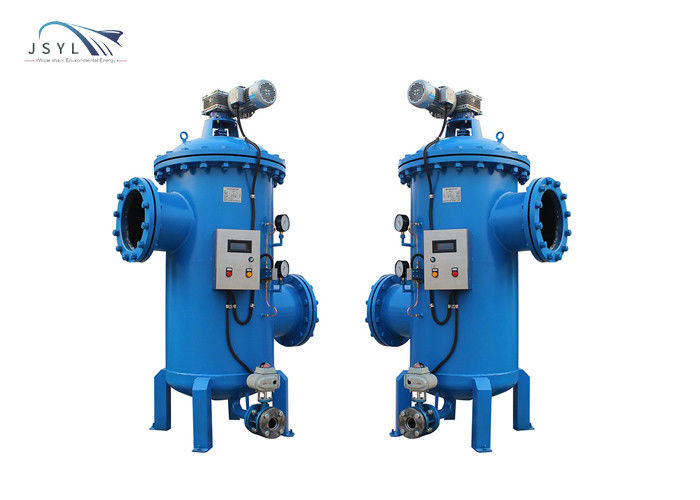

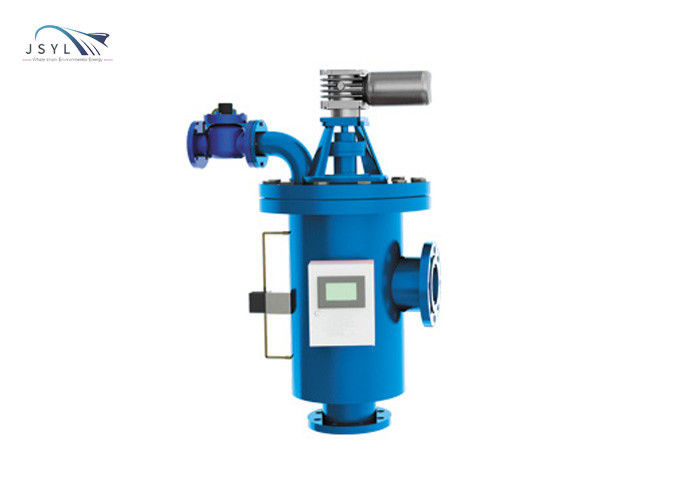

200 micron carbon steel automatic brush type self-cleaning filter
Describe
JSYL series self-cleaning filter is a kind of sewage treatment equipment that uses a filter to directly intercept impurities in the water, remove suspended solids and particulate matter in the water body, reduce turbidity, purify water quality, reduce system dirt, bacteria, algae, rust, etc., to purify water quality And the precision equipment that protects the normal working of other equipment of the system.
working principle

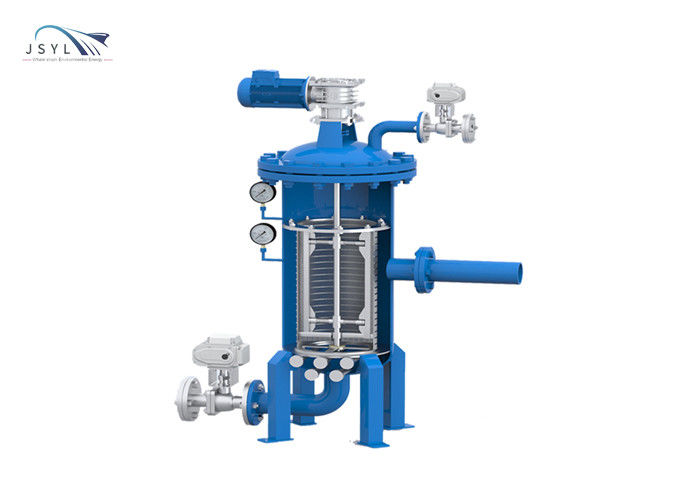

The range when the pressure difference between the water inlet and outlet reaches the set value. The control system rotates the stainless steel brush and the dirt is brushed to the bottom. The bottom drain valve is opened and the dirt is discharged. The grab command can also be executed according to the set time period.
| Product name: | Automatic brush type self-cleaning filter |
| Device model: | JSYL-S1-ZD-DN200 |
| Shell material: | carbon steel |
| Filtration accuracy: | 200 microns |
| Flow rate (cubic meters/hour): | 400 |
| Control method: | automatic intelligent control/manual control |
| Function: | Remove suspended particles and impurities in the liquid |
| Color and size: | can be customized |
| Installation method: | vertical |
Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
