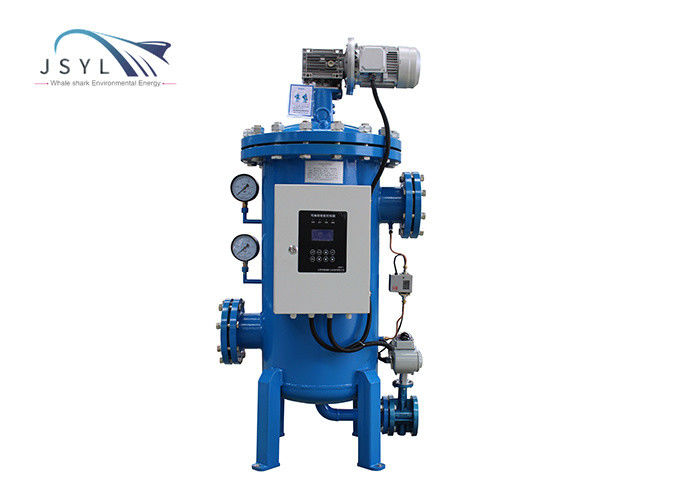

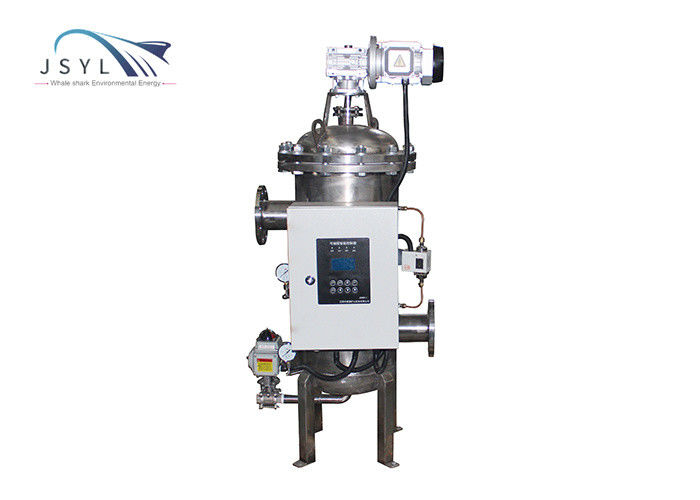

JSYL-S1 Brush Type Automatic Self Cleaning Filter Water Treatment

JSYL-S1 series automatic brush type self-cleaning filter


Describe

The automatic self-cleaning filter is highly efficient and automatically backwashed. It can realize online automatic cleaning, automatic sewage discharge function, operation with three functions of differential pressure/timing/manual, and provide stable water quality guarantee for your water system. The filter continues to run during the flushing process, and a small amount of water is used during the flushing process, which makes the filter very efficient.

working principle
The liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, the impurities in the liquid are deposited on the stainless steel filter screen, when the inlet pressure and outlet pressure reach the set value; the system automatically starts the self-cleaning program; the sensor sends the information It is sent to the power distribution system, and the power distribution system receives the pressure signal to trigger: the electric motor drives the brush to rotate to clean the filter element; at the same time, the sewage valve opens to discharge the sewage; the cleaning time is 10-60 seconds (settable) seconds, and the valve closes when the cleaning ends; The motor stops running; the system returns to the initial state; it begins to enter the next filtration process.

​​

Advantage
1. Fully automatic intelligent control
2. Small size, large flow, high precision
3. Intelligent online backflushing does not stop and flow continuously;
4. The body replaces the filter element, quick-plug design, easy to replace;
5. Multi-filter element structure; precision can be adjusted;
6. It can be installed vertically/horizontally, which significantly saves installation space
7. The filter element has an online recoil precision of 5 microns, which can be used repeatedly.
