Vertical Carbon Steel Automatic Self Cleaning Filter For Mining Industries

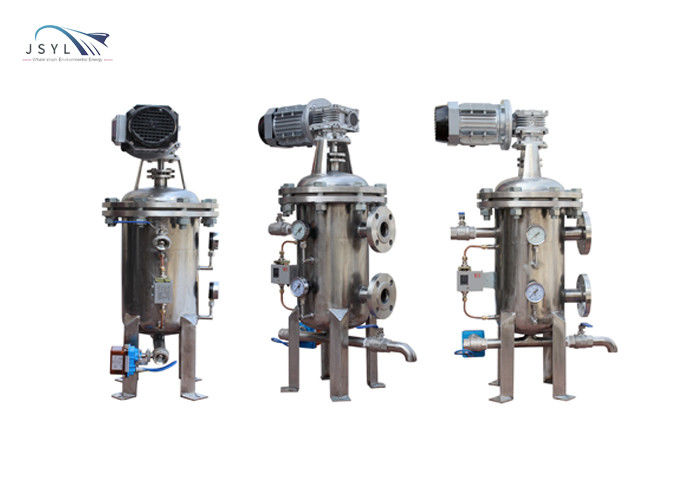

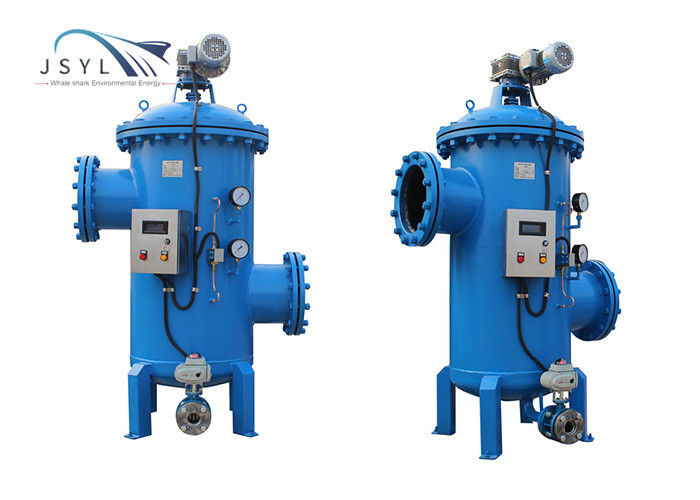

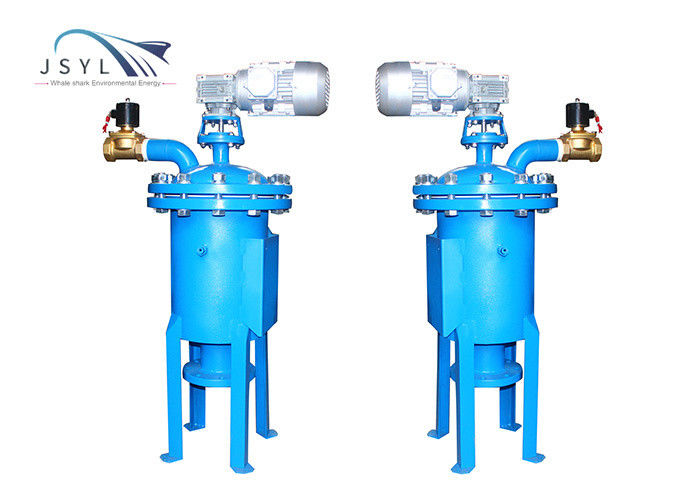

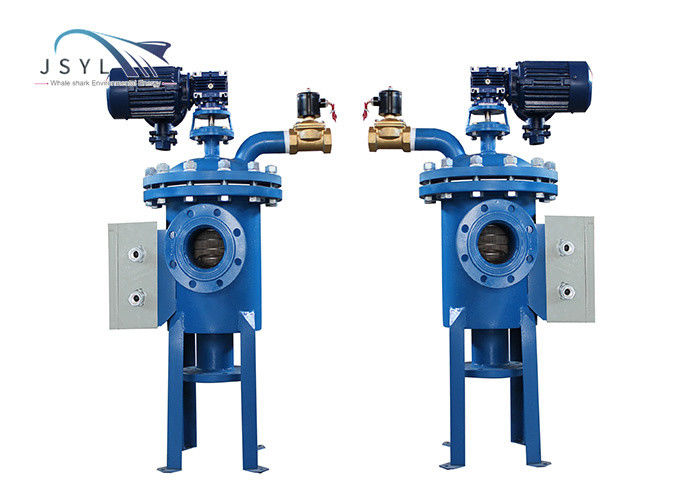

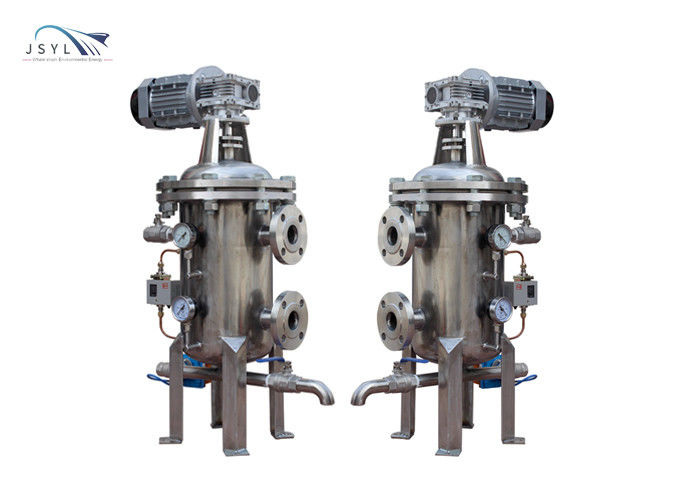

Vertical carbon steel automatic self-cleaning filter


Describe

The automatic brush filter is suitable for various water supply systems, especially the continuous operation non-stop system. It can filter out various suspended impurities in the water to ensure the safe and reliable operation of the system equipment. It is an ideal substitute for imported filters.

Working principle

The liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, the impurities in the liquid are deposited on the stainless steel filter screen, when the inlet pressure and outlet pressure reach the set value; the system automatically starts the self-cleaning program; the sensor sends the information It is sent to the power distribution system, and the power distribution system receives the pressure signal to trigger: the electric motor drives the brush to rotate to clean the filter element; at the same time, the sewage valve opens to discharge the sewage; the cleaning time is 10-60 seconds (settable) seconds, and the valve closes when the cleaning ends; The motor stops running; the system returns to the initial state; it begins to enter the next filtration process.

Features

1: The filter element assembly is easy to disassemble, replace and maintain.
2: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)
3: Motor forward and reverse automatically switch
