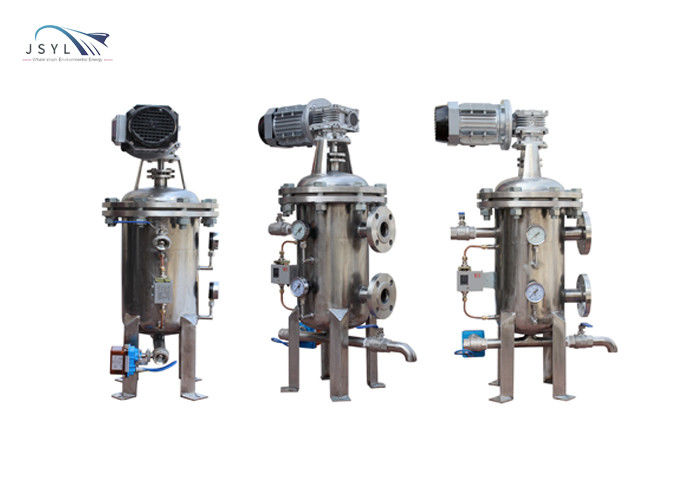

Dia 3'' To 24'' Pipe Automatic Self Cleaning Filter Wastewater Treatment Device

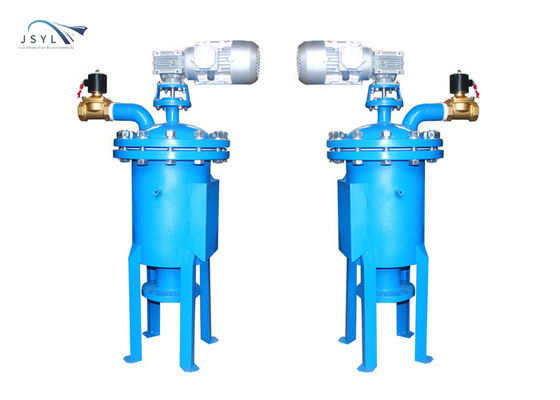

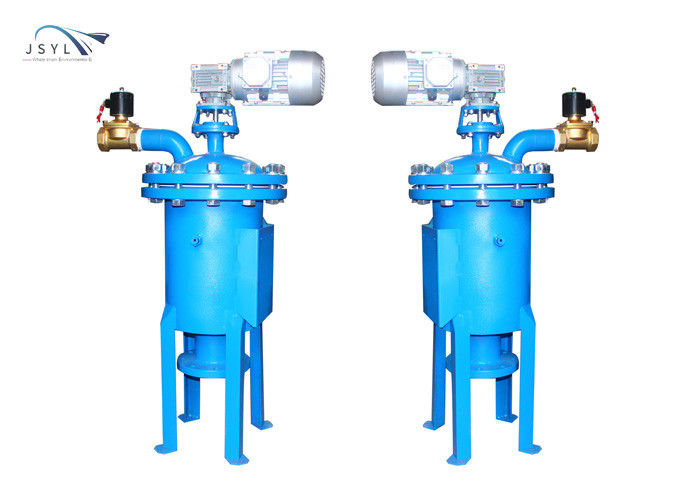

Self-cleaning brush filter wastewater treatment device


Describe

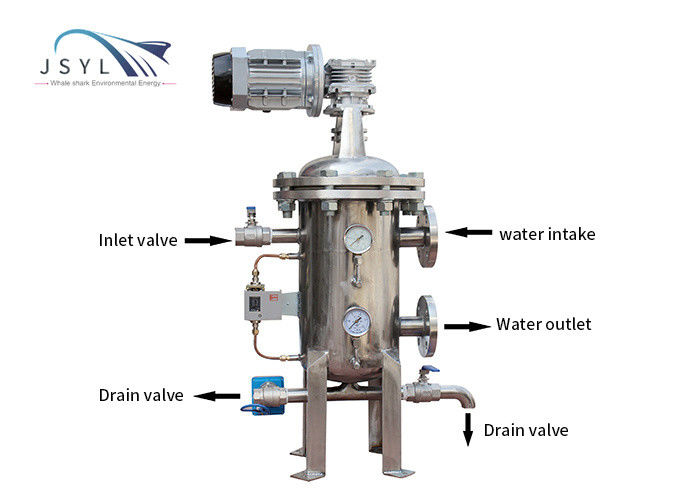

The liquid enters the body filter through the inlet to filter, the liquid is filtered by the filter element, the impurities in the liquid are deposited on the stainless steel filter screen, when the inlet pressure and outlet pressure reach the set value; the system automatically starts the self-cleaning program; the sensor sends the information It is sent to the power distribution system, and the power distribution system receives the pressure signal to trigger: the electric motor drives the brush to rotate to clean the filter element; at the same time, the sewage valve opens to discharge the sewage; the cleaning time is 10-60 seconds (settable) seconds, and the valve closes when the cleaning ends; The motor stops running; the system returns to the initial state; it begins to enter the next filtration process.

Working principle

The range when the pressure difference between the water inlet and outlet reaches the set value. The control system rotates the stainless steel brush and the dirt is brushed to the bottom. The bottom drain valve is opened and the dirt is discharged. The grab command can also be executed according to the set time period.

Features
1: Large flow; small volume; large filter area
2: Continuous flow during self-cleaning and sewage, low water consumption and short cleaning time.
3: The filter element assembly is easy to disassemble, replace and maintain.
4: The unique design of the cleaning brush (with a spring and retractable adjustment; unique)

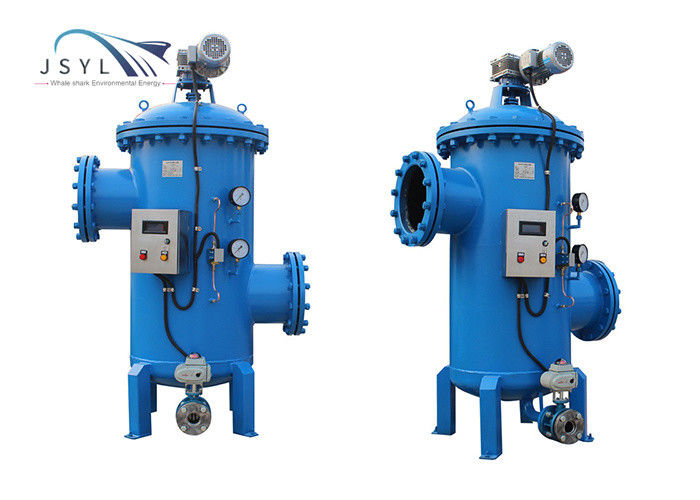

5: Fully automatic intelligent control can be remote.
6: The motor is automatically switched between forward and reverse
7: Manual intake valve/drain valve, the equipment stops working, and the internal sewage can be discharged manually
