High Light
127V Industry Water Filter
,DN150 Mining Industry Water Filter
,2000L Industry Water Filter Station
-
Product NameMining Water Filter
-
OriginHebei China
-
Applicable IndustriesFiltration Of Emulsified Liquid And Emulsified Oil For Underground Hydraulic Supports In Coal Mines
-
Core ComponentsBackwash Filter
-
Warranty1 Year
-
Weight550KG
-
Power200W
-
Shell Material304
-
SurfaceFilter 304
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

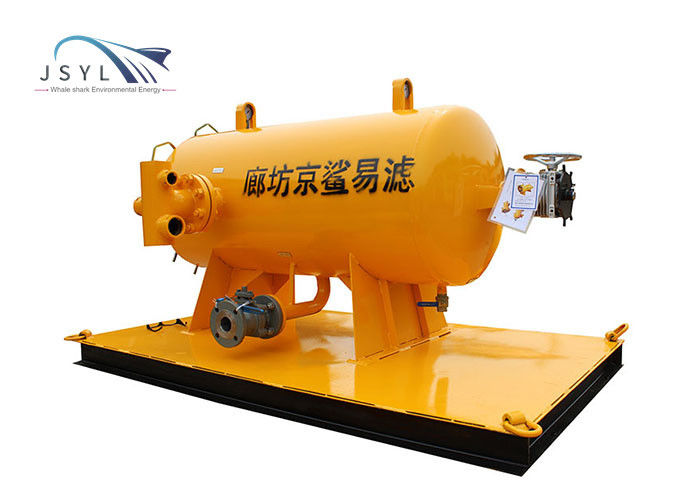

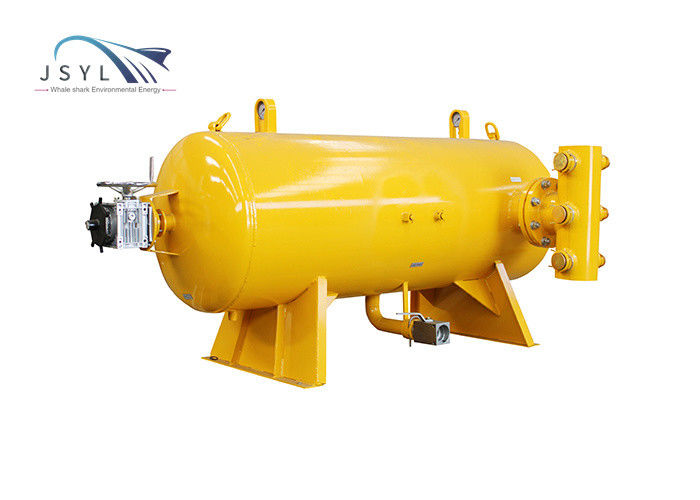

127V 2000L Mining Industry Water Filter Station
2000L manual clean water backwash filter station
Introduce:
The JSYL automatic multi-core clean water backwash filter station uses the filter to directly intercept the solid particles in the liquid medium, reduce the turbidity of the liquid medium (pipeline liquid, emulsion, emulsified oil, water, etc.), purify the liquid, and prevent solid particles from entering the liquid medium Medium; reduce system fouling and keep the liquid medium clean.
Applicable scope/field:
It is mainly used for water filtration of emulsion in underground coal mines, water curtain dust prevention and dust reduction filtration, large-scale electromechanical water-cooled circulation filter, high-pressure coal seam water injection, coal transfer points, main water pipelines, return air lanes, coal washing plants, clean water filtration stations, etc. Waste oil filtration, etc.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model | JSYL-QDX-SD-DN150/KJ126 (Double in and double out) |
Single machine flow |
2000L/Min |
| Shell selection | carbon steel/304 | Rated pressure | 1.6-5.0MPa |
| Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
| Filter element specification | JSYL-HL-25-800-φ110 | Filtration accuracy | 10μm/25μm/40μm/60μm/100μm |
| Pressure gauge | Seismic pressure gauge | Filler replenishment cycle | Replenish once every three months/half a year |
| Operation mode | Manual mechanical operation | Filter element design | Quick plug-in installation |
|
Equipment power supply
|
Voltage 127V | Installation method | vertical/horizontal installation |
Our products are sold all over the world, you can rest assured.
