High Light
Mining Industry Water Filter DN50
,Emulsified Oil Industry Water Filter
,Automatic High Pressure Backwash Filter
-
Product NameMining Water Filter
-
OriginHebei China
-
Applicable IndustriesMainly Used On The Branch Pipeline Of The Well Dust Prevention And Mist Reduction Water Curtain
-
Core ComponentsBackwash Filter
-
Warranty1 Year
-
Weight500-800KG
-
Power200W
-
Shell Material304
-
SurfaceFilter 304
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

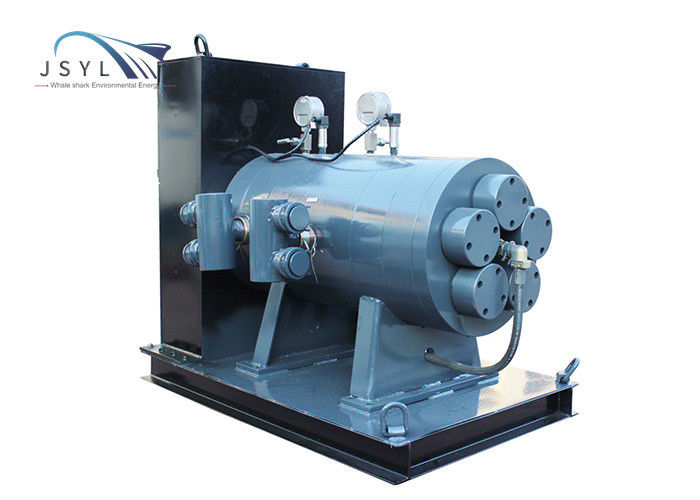

Emulsified Liquid Oil Mining Industry Water Filter DN50
Automatic high-pressure backwash filter station for emulsified liquid and emulsified oil filtration
Introduce:
Few vulnerable contacts, low mechanical and manual maintenance costs; the filter element is made of high-temperature special process multi-layer sintering, trumpet design, cleaning is more thorough, filter element replacement adopts quick-plug design, body replacement, operation is minimal; filtering accuracy is based on Need to switch at will, small size, large flow, high precision, non-stop and continuous flow during backwashing.
Applicable scope/field:
Mainly used for the filtration of emulsion and oil of hydraulic supports, the use of emulsion tanks and hydraulic pumps to reduce the wear of hydraulic components of the hydraulic system, further improve the reliability and stability of the hydraulic system of fully mechanized mining, improve work efficiency, and reduce the hydraulic system The failure rate ensures the normal operation of the hydraulic support and improves the equipment operation rate of the fully mechanized mining system.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model | JSYL-GDX-ZD-KJ51/DN50 (Double in and double out) |
Shell selection |
alloy steel |
| Single machine flow | 1000L/Min/2000L/Min | Rated pressure | 31.5-50MPa |
| Applicable viscosity (cp) |
1-40cp
|
Operation mode |
Fully automatic intelligent control
(Time mode/Differential pressure mode) |
| Cleaning method | The device itself backwashes the filter element | Filter element type | 304 stainless steel sintered inverted mesh (high pressure filter element) |
| Number of filter elements | A single unit comes standard with 5 high-pressure filter elements |
Filter accuracy |
25 microns |
| Applicable temperature (°C) |
-20-50°C |
Filter replacement | Body replacement filter 15 minutes |
Features:
1. Explosion-proof automatic intelligent control for mining
2. Small size, large flow, high precision
3. High pressure resistance; can withstand 32-50MPa pressure
4. The filter element adopts a horn-shaped design to clean more thoroughly
5. Intelligent online backwash without stopping and continuous flow
6. The body replaces the filter element, quick-plug design; easy to replace
7. One machine for multiple purposes; precision can be adjusted
