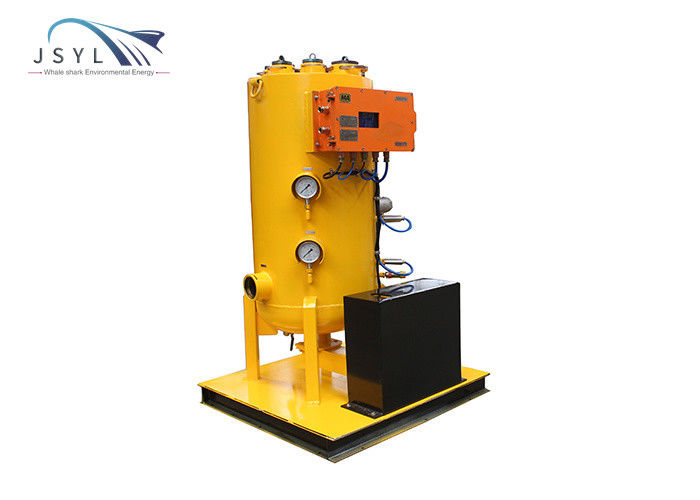

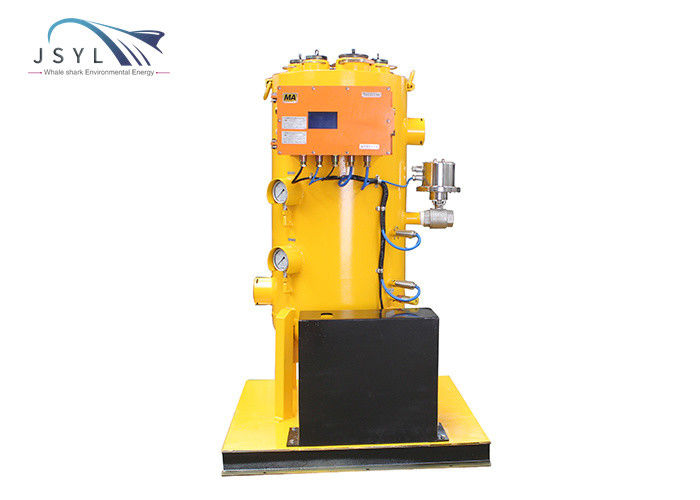

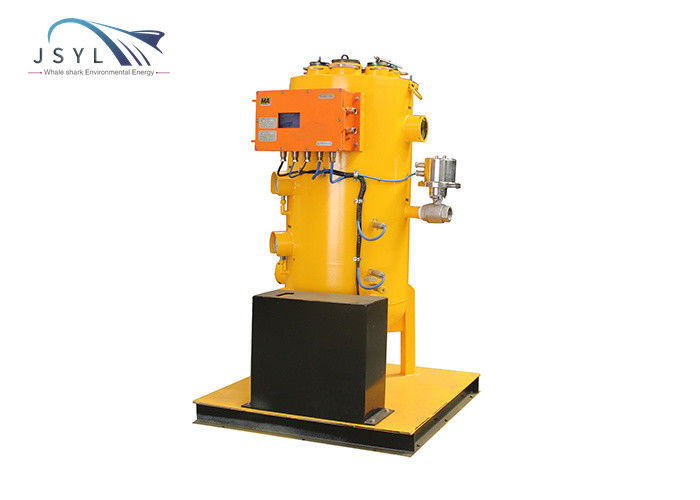

1000L mine automatic softening and descaling integrated machine
Introduce:
Jingsha easy filter softening filter integrated machine mainly combines the advantages of silicon-phosphorus crystal softening tank and multi-core precision backwash filter into a new generation of filter device; it has both the characteristics of silicon-phosphorus crystal softening device and multi-core precision backwash filter Advantages; Fully automatic or manual control; Online recoil, continuous flow without stopping; It is faster to replace the filter element of the body; It is widely used in various fields; Top technology and innovative products are trustworthy;
Advantage:1. Fully automatic intelligent control;
2. Combine softening and filtering into one machine for multiple purposes;
3. Online backwashing will not stop and flow continuously,
4. The filter element is installed with quick plug-in type, easy to replace and maintain;
5. Reduce the hardness of water and soften the water;
6. Compact structure, small installation space;
7. It has anti-scaling and anti-corrosion effects to prevent secondary pollution;
8. Multi-filter element structure; precision can be adjusted;
9. It can be installed vertically/horizontally/wall-mounted, which significantly saves installation space.
PRODUCT PARAMETER | |||
Specifications | Equipment parameters | Specifications | Equipment parameters |
Equipment model | JSYL-RGDX-ZD-KJ102 | Single machine flow |
1000L/Min |
Shell selection | 304 material | Rated pressure | 1.6-5.0MPa |
Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
Filter element specification | JSYL-QL-25-850-φ85 | Filtration accuracy | 10μm/25μm/40μm/60μm/100μm |
Filling filter material | Silicon phosphorous crystal ball | Filler replenishment cycle | Replenish once every three months/half a year |
Operation mode | Fully automatic intelligent control (time mode/differential pressure mode) | Control device | ZLF127 backwash filter control device |
Equipment power supply
|
Voltage 127V | Installation method | vertical/horizontal |
Applicable fields:
It is mainly used to filter the emulsion of hydraulic support underground in coal mines, filter out metal particles and rubber impurities of seals in the hydraulic system, and keep the liquid flowing back to the tank clean.
