25um Mining Industry Water Filter Emulsified Liquid Emulsified Oil Backwash Filter
-
High Light
25um Industry Water Filter
,300mm Mining Industry Water Filter
,Emulsified Oil Backwash Filter
-
Product NameMining Water Filter
-
OriginHebei China
-
Applicable IndustriesManufacturing Plants, Industry, Agriculture, Energy And Mining
-
Warranty ServiceVideo Technical Support, Online Support Maintenance And Repair Services
-
Core ComponentsBackwash Filter
-
Warranty1 Year
-
Weight500-800KG
-
Equipment Size (L*W*H)1050*900*1000
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

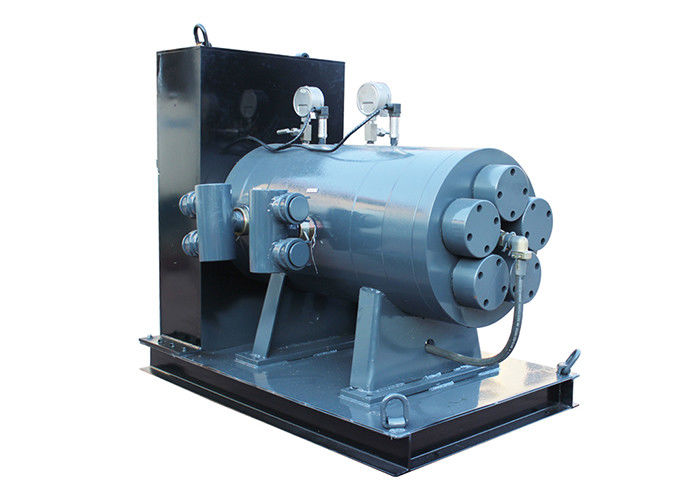

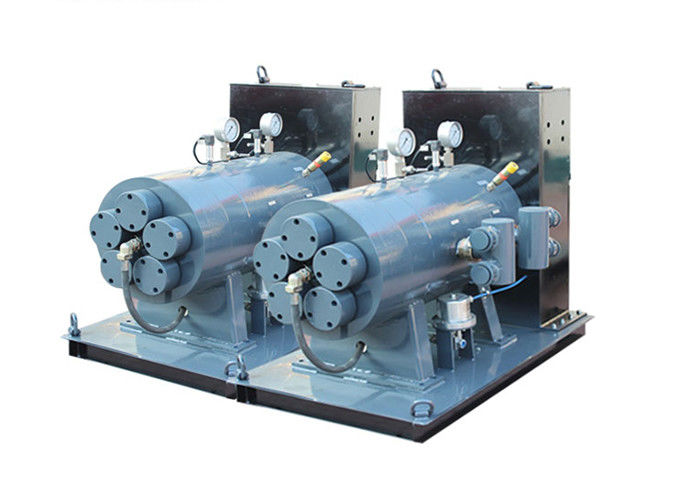

25um Mining Industry Water Filter Emulsified Liquid Emulsified Oil Backwash Filter
Automatic high-pressure backwash filter station for emulsified liquid and emulsified oil filtration
Describe
Few fragile contacts, low mechanical and manual maintenance costs; filter element is made of high-temperature special process multi-layer sintering, trumpet design, cleaning is more thorough, filter element replacement adopts quick-plug design, body replacement, operation is minimal; filtering accuracy is based on Need to switch at will, small size, large flow, high precision, non-stop and continuous flow during backwashing.
Scope of application
Mainly used for the filtration of emulsion and oil in hydraulic supports, the use of emulsion tanks and hydraulic pumps together to reduce the wear of hydraulic components of the hydraulic system, further improve the reliability and stability of the hydraulic system of fully mechanized mining, improve work efficiency, and reduce the hydraulic system The failure rate ensures the normal operation of the hydraulic support and improves the equipment operation rate of the fully mechanized mining system.
| PRODUCT PARAMETER | |||
| Device model | JSYL-GDX-ZD-KJ51/DN50 | Cleaning method | The equipment itself backwashes the filter element |
| Shell selection | Alloy steel | Filter element form |
304 stainless steel sintered inverted mesh (high pressure filter element) |
| Single machine flow | 1000L/Min | Number of filter elements | A single unit comes standard with 5 high-pressure filter elements |
| Preset pressure |
31.5-50MPa
|
Filtration accuracy |
25 microns
|
| Applicable viscosity | 1-40cp | Applicable temperature | -20-50°C |
| Operation mode | Fully automatic intelligent control | Filter replacement | Body replacement filter |
| Backwash components | 316L stainless steel | Filter element design | Quick installation |
|
powerplant
|
Electric actuator 200W for mining | Main tube | Φ300mm |
| Backwash node | Five-Star Node Disk | Pressure gauge | Anti-vibration pressure gauge |
| Filter replacement cycle | Half a year / more than one year | Installation method | Horizontal installation |
| Filter specifications | JSYL-GL-25-350-φ50 | Pressure Sensor |
Intrinsically safe explosion-proof for mine 0-60MPa
|
| Equipment power supply | Voltage 127V | Control device | ZLF127 backwash filter control device |
Advantage
1. Explosion-proof automatic intelligent control for mining
2. Small size, large flow, high precision
3. High pressure resistance; can withstand 32-50MPa pressure
4. The filter element adopts a horn-shaped design to clean more thoroughly
5. Intelligent online backwash without stopping and continuous flow
6. The body replaces the filter element, quick-plug design; easy to replace
7. One machine for multiple purposes; precision can be adjusted
