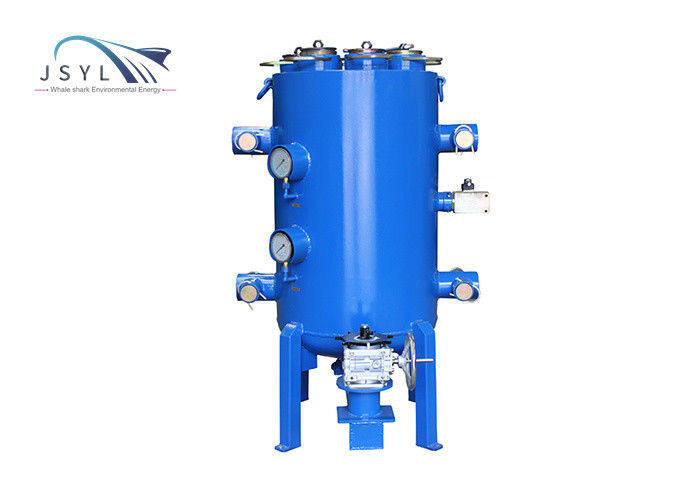

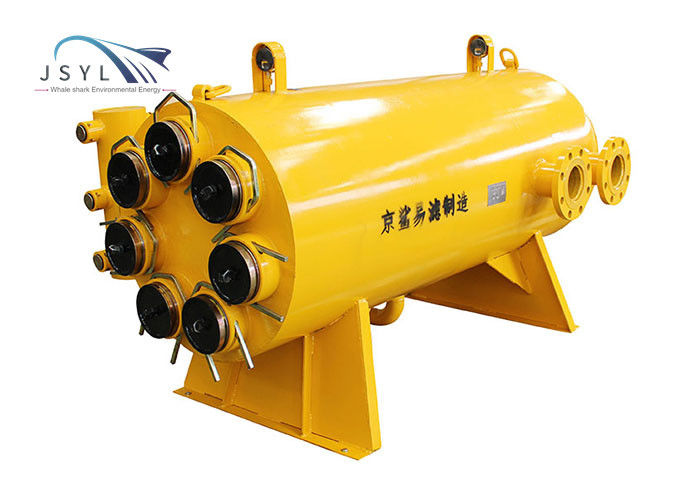

Carbon steel material Manual clean water backwash filter station
Introduce:
The multi-core precision backwash water filter station uses the filter screen to directly intercept the solid particles in the liquid medium, reduce the turbidity of the liquid medium, purify the liquid, and prevent solid particles from entering the liquid medium; reduce the generation of system fouling and keep the liquid medium clean.
Applicable scope/field:
It is mainly used for water filtration of emulsion in underground coal mines, water curtain dust prevention and dust reduction filtration, large-scale electromechanical water-cooled circulation filter, high-pressure coal seam water injection, coal transfer points, main water pipelines, return air lanes, coal washing plants, clean water filtration stations, etc. Waste oil filtration, etc.
PRODUCT PARAMETER | |||
Specifications | Equipment parameters | Specifications | Equipment parameters |
Equipment model | JSYL-HDX-SD-DN100/KJ102 (Double in and double out) |
Single machine flow |
1000L/Min |
Shell selection | Alloy steel | Rated pressure | 2.5-8.0MPa |
Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
Filter element specification | JSYL-HL-25-850-φ85 | Filtration accuracy | 10μm/25μm/40μm/60μm/100μm |
Pressure gauge | Seismic pressure gauge | Filler replenishment cycle | Replenish once every three months/half a year |
Operation mode | Manual mechanical operation | Filter element design | Quick plug-in installation |
Equipment power supply
|
Voltage 127V | Installation method | Horizontal installation |
Features:
Few fragile contacts, low mechanical and manual maintenance costs; filter element is made of high-temperature special process multi-layer sintering, trumpet design, cleaning is more thorough, filter element replacement adopts quick-plug design, body replacement, operation is minimal; filtering accuracy is based on Need to switch at will, small size, large flow, high precision, non-stop and continuous flow during backwashing.
