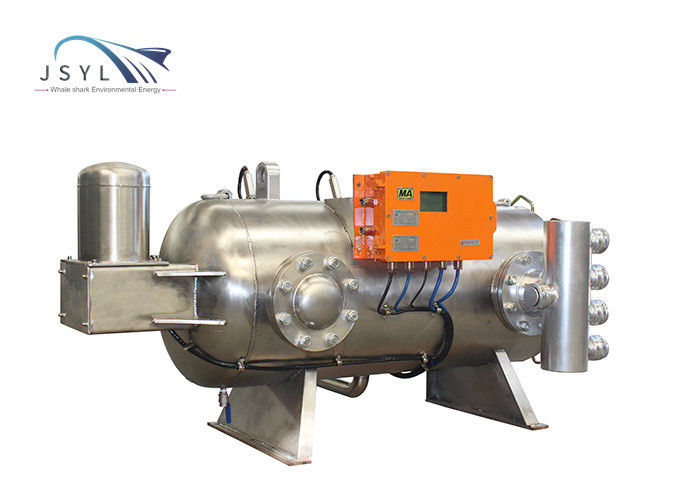

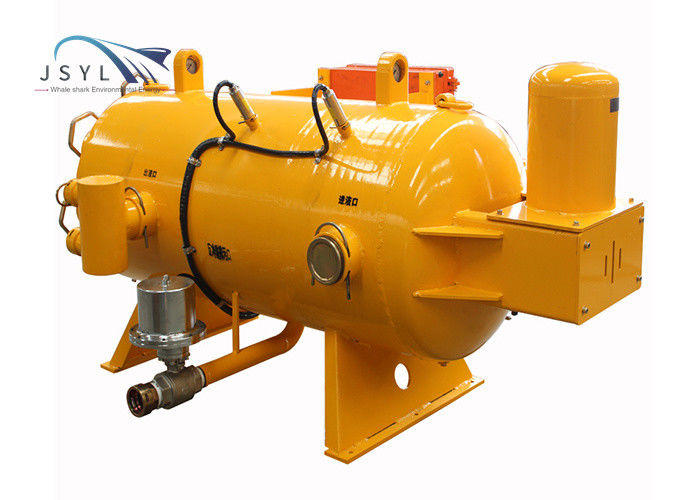

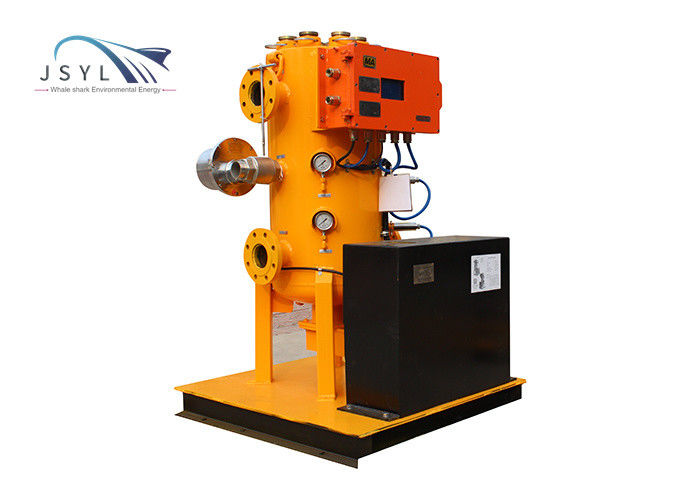

Automatic liquid return backwash filter station for mine
Introduce:
The equipment can meet the requirements for liquid cleanliness in system operation and downstream processes, and can also be used to protect key downstream equipment from particle blockage, abrasion or fouling, improve the operating efficiency and service life of key equipment, and ensure the safe operation of the system. The machine can continuously filter on-line, online recoil and sewage discharge without stopping; continuous flow; high precision; large effective filtering area; high pressure resistance and other advantages.
Applicable scope/field:
Mainly used in the hydraulic support emulsion liquid return filtration, to filter out the metal particles generated by the wear of the hydraulic system components and the rubber impurities of the seals and other contaminants, so that the liquid returning to the tank is kept clean
PRODUCT PARAMETER | |||
Specifications | Equipment parameters | Specifications | Equipment parameters |
Equipment model | JSYL-HDX-ZD-KJ102/DN100 (Double in and double out) |
Single machine flow |
1000L/Min |
Shell selection | Alloy steel | Rated pressure | 2.5-8.0MPa |
Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
Filter element specification | JSYL-HL-25-850-φ85 | Filtration accuracy | 10μm/25μm/40μm/60μm/100μm |
Pressure gauge | Seismic pressure gauge | Filler replenishment cycle | Replenish once every three months/half a year |
Operation mode | Manual mechanical operation | Filter element design | Quick plug-in installation |
Equipment power supply
|
Voltage 127V | Installation method | Horizontal installation |
Features:
Few vulnerable contacts, low cost of mechanical maintenance and manual maintenance;
The filter element is made of multi-layer sintering with a high-temperature special process, and has a horn-shaped design for more thorough cleaning; the filter element is replaced with a quick-plug design, the body is replaced, and the operation is minimal;
The filtering precision can be switched at will according to the demand, with small size, large flow, high precision, and continuous flow without stopping during backwashing.
