High Light
Manual Mining Industry Water Filter
,40um Mining Industry Water Filter
,Manual Backwash Filter 2000L/Min
-
Product NameMining Water Filter
-
OriginHebei China
-
Applicable IndustriesFiltration Of Emulsified Liquid And Emulsified Oil For Underground Hydraulic Supports In Coal Mines
-
Core ComponentsBackwash Filter
-
Warranty1 Year
-
Weight700KG
-
Power200W
-
Shell Material304
-
SurfaceFilter 304
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

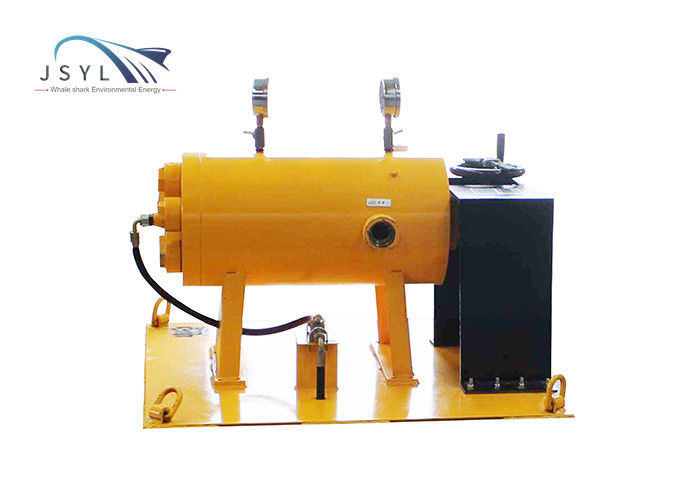

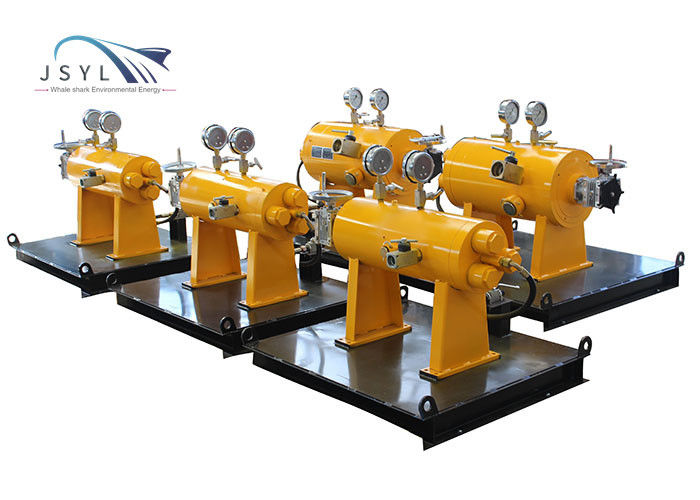

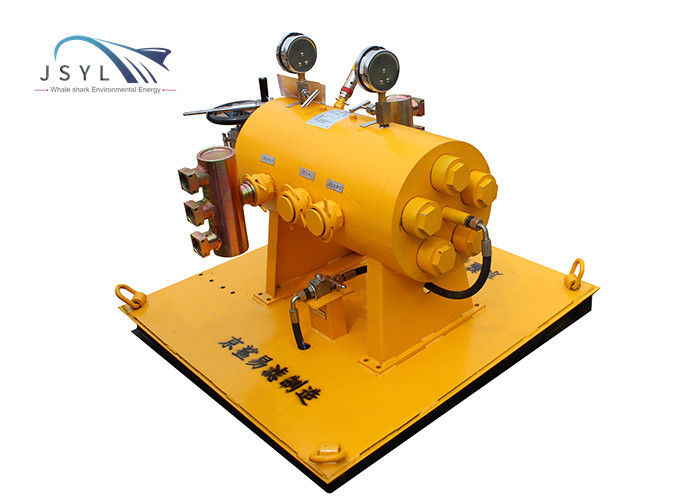

40um Manual Backwash Mining Industry Water Filter 2000L/Min
2000L manual high pressure backwash filter station
Introduce:
The machine can continuously filter on-line, backflush and discharge the sewage without stopping; continuous flow; high precision; large effective area; high pressure resistance and other advantages.
Applicable scope/field:
It is mainly used for the filtration of emulsion and emulsified oil of the hydraulic support, and the emulsion tank and the hydraulic pump are used together as the first-stage filter at the outlet of the pump station to protect the support and hydraulic equipment for coal mining.
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model | JSYL-GDX-SD-KJ51/DN50 (Double in and double out) |
Single machine flow |
2000L/Min |
| Shell selection | alloy steel | Rated pressure | 31.5-50MPa |
| Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
| Filter element specification | JSYL-GL-25-500-φ60 | Filtration accuracy | 10μm/25μm/40μm/60μm/100μm |
| Pressure gauge | Seismic pressure gauge | Filler replenishment cycle | Replenish once every three months/half a year |
| Operation mode | Manual mechanical operation | Filter element design | Quick plug-in installation |
|
Equipment power supply
|
Voltage 127V | Installation method | Horizontal installation |
working principle:
The same equipment can achieve three filtration precisions of coarse, medium and fine; the liquid enters the body through the inlet to filter, and the impurities are deposited on the stainless steel filter screen. When the inlet pressure and outlet pressure reach the set value; manually open the sewage valve and turn the hand wheel of the reducer, As a result, the backwashing node plate rotates 360 degrees, and the high-pressure filter element is sequentially backwashed, and the online backwashing will not stop and flow continuously.
Our products are sold all over the world, you can rest assured.
