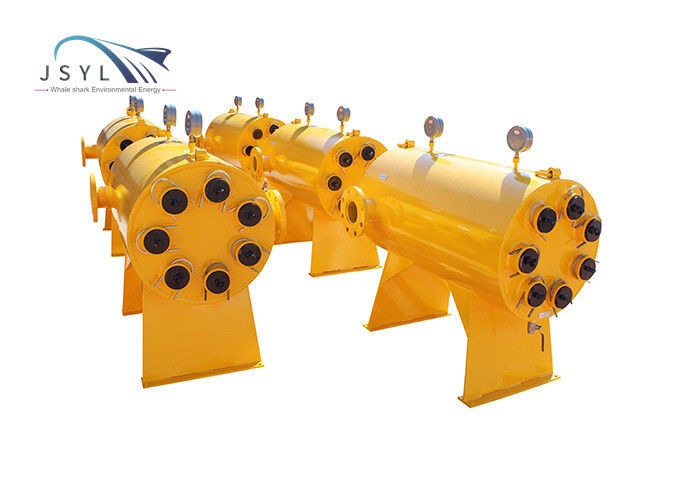

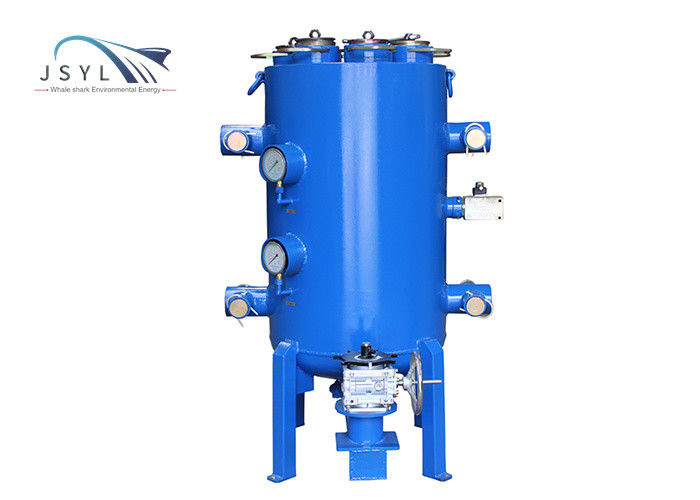

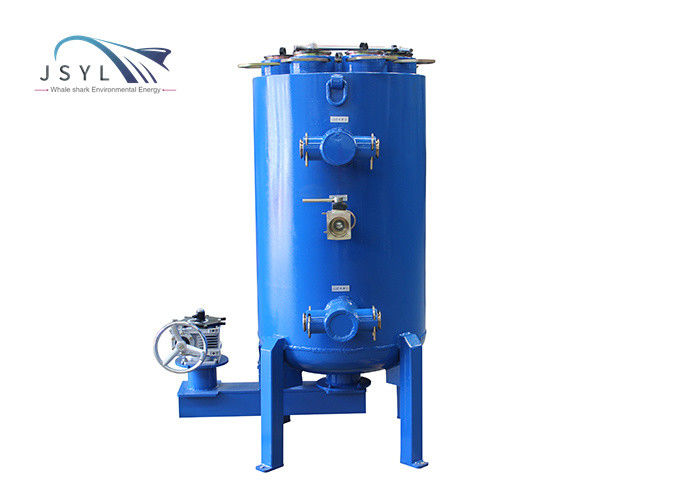

Manual liquid return Backwash filter station
Introduce:
The multi-core precision backwash liquid return filter station uses the filter screen to directly intercept the solid particles in the liquid medium, reduce the turbidity of the liquid medium, purify the liquid, and prevent solid particles from entering the liquid medium; reduce the generation of system fouling and keep the liquid medium clean.
Applicable scope/field:
The filter station is installed in front of the inlet of the liquid return pipe. It is mainly used for the fine filtration of the emulsion of the hydraulic system to filter out the metal particles caused by the wear of the components in the hydraulic system and the rubber impurities of the seals, so that the liquid flowing back to the liquid tank keep clean.
PRODUCT PARAMETER | |||
Specifications | Equipment parameters | Specifications | Equipment parameters |
Equipment model | JSYL-HDX-SD-DN150/KJ126 (Double in and double out) |
Single machine flow |
2000L/Min |
Shell selection | carbon steel/304 | Rated pressure | 2.5-8.0MPa |
Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
Filter element specification | JSYL-HL-25-800-φ110 | Filtration accuracy | 10μm/25μm/40μm/60μm/100μm |
Pressure gauge | Seismic pressure gauge | Filler replenishment cycle | Replenish once every three months/half a year |
Operation mode | Manual mechanical operation | Filter element design | Quick plug-in installation |
Equipment power supply
|
Voltage 127V | Installation method | vertical/horizontal installation |
Features:
1. Small size, large flow, high precision
2. Multi-element; filter elements recoil one by one
3. The filter element adopts a horn-shaped design to clean more thoroughly
4. Online backwash without stopping and continuous flow
5. Quick-plug design of filter element; easy to replace
6. One machine for multiple purposes; precision can be adjusted
