High Light
2000L/Min Liquid Return Backwash Filter
,8.0MPa Liquid Return Backwash Filter
,10um Automatic Backwash Filter Station
-
Product NameMining Water Filter
-
OriginHebei China
-
Applicable IndustriesFiltration Of Emulsified Liquid And Emulsified Oil For Underground Hydraulic Supports In Coal Mines
-
Core ComponentsBackwash Filter
-
Warranty1 Year
-
Weight600KG
-
Power200W
-
Shell Material304
-
SurfaceFilter 304
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

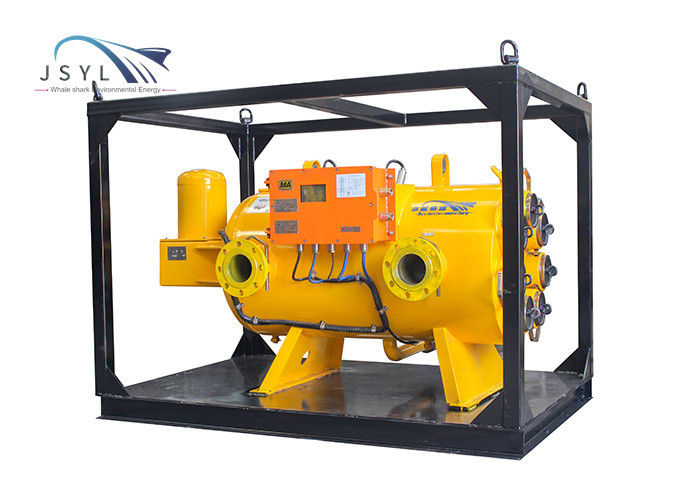

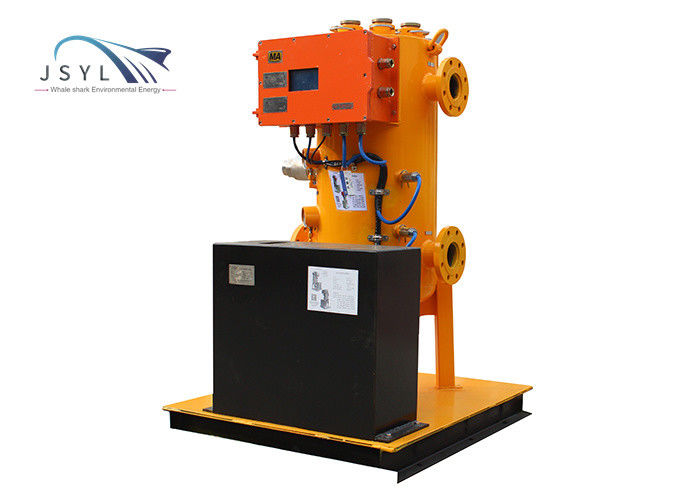

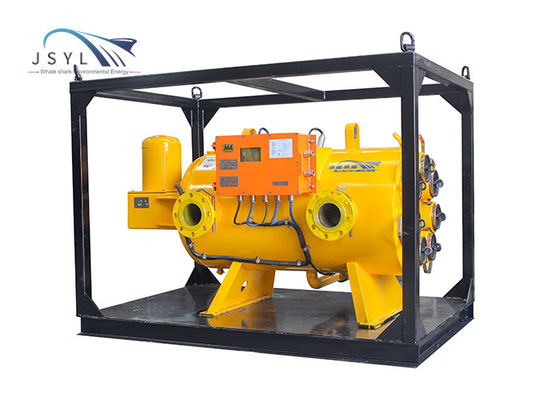

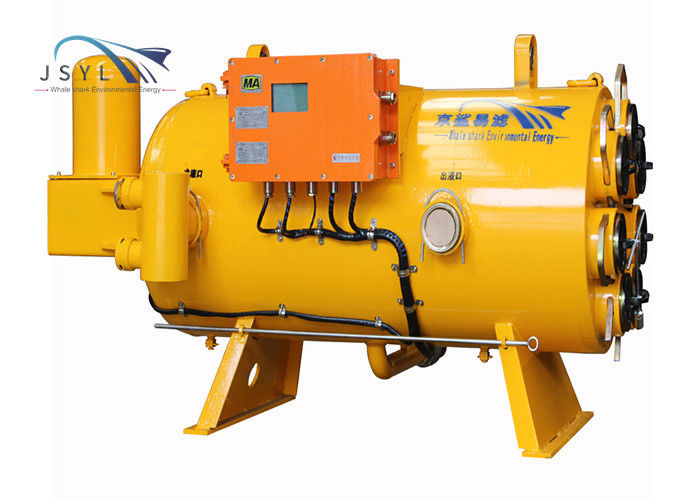

2000L/Min Automatic Liquid Return Backwash Filter Station
2000L automatic liquid return backwash filter station
Working principle:
The same device can achieve three filtration precisions of coarse, medium and fine. The liquid enters the body through the inlet for filtration; impurities are deposited on the stainless steel filter screen, when the inlet pressure and outlet pressure reach the preset value; the equipment recoil mode starts, and the high pressure precision The filter element is backwashed online; the backwashing node disk rotates 360 degrees; the online backwashing can be completed in 20 seconds, and the online backwashing will continue to flow without stopping the machine.
Applicable scope/field:
Mainly used in the hydraulic support emulsion liquid return filtration, to filter out the metal particles generated by the wear of the hydraulic system components and the rubber impurities of the seals and other contaminants, so that the liquid returning to the tank is kept clean
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model | JSYL-HDX-ZD-KJ126/DN150 (Double in and double out) |
Single machine flow |
2000L/Min |
| Shell selection | carbon steel/304 | Rated pressure | 2.5-8.0MPa |
| Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
| Filter element specification | JSYL-HL-25-800-φ110 | Filtration accuracy | 10μm/25μm/40μm/60μm/100μm |
| Pressure gauge | Seismic pressure gauge | Filler replenishment cycle | Replenish once every three months/half a year |
| Operation mode | Fully automatic intelligent control (Time mode/Differential pressure mode) |
Filter element design | Quick plug-in installation |
|
Equipment power supply
|
Voltage 127V | Installation method | vertical/horizontal installation |
Features:
1. Small size, large flow, high precision
2. High pressure resistance; can withstand 2.5-8.0 pressure
3. The filter element adopts a horn-shaped design to clean more thoroughly
4. Intelligent online backwash without stopping and continuous flow
5. The body replaces the filter element, quick-plug design; easy to replace
6. One machine for multiple purposes; precision can be adjusted
Our products are sold all over the world, you can rest assured.
