2000L 2 In 2 Out Automatic Backwash Water Filter 1.6MPa To 5.0MPa
-
High Light
2000L automatic backwash water filter
,automatic backwash water filter 1.6MPa
,5.0MPa automatic backwash filters
-
Product NameMining Water Filter
-
OriginHebei China
-
Applicable IndustriesFiltration Of Emulsified Liquid And Emulsified Oil For Underground Hydraulic Supports In Coal Mines
-
Core ComponentsBackwash Filter
-
Warranty1 Year
-
Weight650KG
-
Power200W
-
Shell Material304
-
SurfaceFilter 304
-
Place of OriginHeBei China
-
Brand NameJing shark
-
Minimum Order Quantity1 set of
-
PriceNegotiable
-
Packaging DetailsSpecial carton and wooden case packing for export
-
Delivery Time15 days
-
Payment TermsT/T
-
Supply Ability10,000 units per month

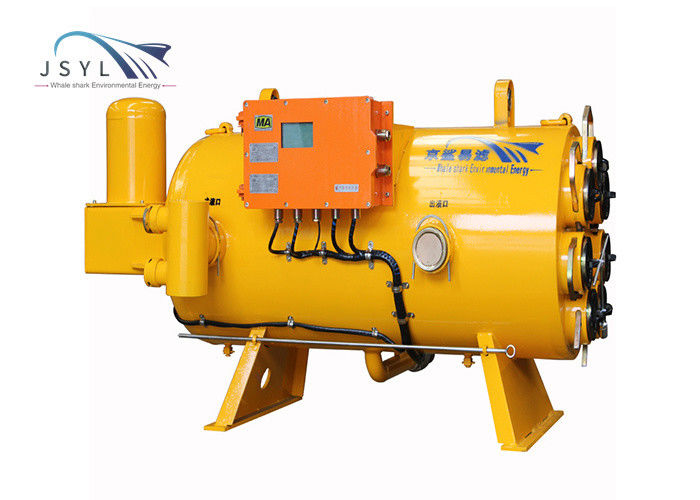

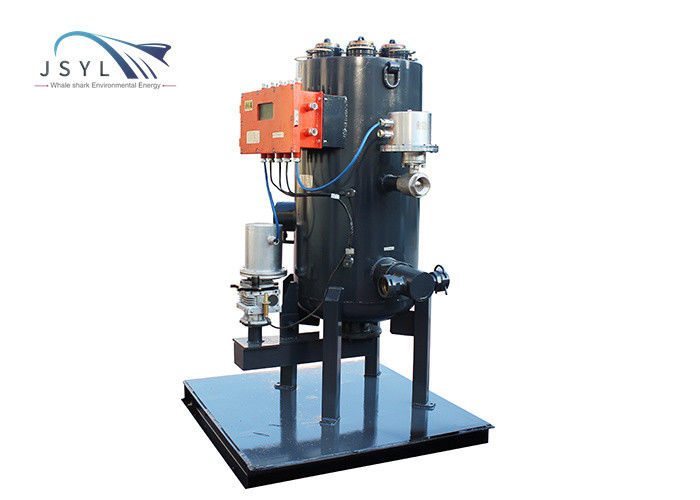

2000L 2 In 2 Out Automatic Backwash Water Filter 1.6MPa To 5.0MPa
2000L automatic clean water backwash filter station
Introduce:
The equipment can meet the requirements for liquid cleanliness in system operation and downstream processes, and can also be used to protect key downstream equipment from particle blockage, abrasion or fouling, improve the operating efficiency and service life of key equipment, and ensure the safe operation of the system. The machine can continuously filter on-line, online recoil and sewage discharge without stopping; continuous flow; high precision; large effective filtering area; high pressure resistance and other advantages.
Applicable scope/field:
Emulsion ratio water filtration in underground coal mines, water curtain dust-proof and dust-reduction filtration, large-scale electromechanical water-cooled circulation filter, high-pressure coal seam water injection, coal transfer point, main water pipeline, return air tunnel, coal washing plant, clean water filter station, etc. Wastewater and oil filtration Wait
| PRODUCT PARAMETER | |||
| Specifications | Equipment parameters | Specifications | Equipment parameters |
| Equipment model | JSYL-QDX-ZD-KJ126/DN150 (Double in and double out) |
Single machine flow |
2000L/Min |
| Shell selection | carbon steel/304 | Rated pressure | 1.6-5.0MPa |
| Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
| Filter element specification | JSYL-QL-25-800-φ110 | Filtration accuracy | 10μm/25μm/40μm/60μm/100μm |
| Pressure gauge | Seismic pressure gauge | Filler replenishment cycle | Replenish once every three months/half a year |
| Operation mode | Fully automatic intelligent control (Time mode/Differential pressure mode) |
Filter element design | Quick plug-in installation |
|
Equipment power supply
|
Voltage 127V | Installation method | vertical/horizontal installation |
Features:
1. Small size, large flow, high precision
2. Multi-core; filter element recoils one by one, constant flow recoil without stopping, continuous flow;
3. The filter element adopts a horn-shaped design for more thorough cleaning, quick-plug installation, and easy replacement;
4. The filter element is pressure resistant, and the replacement period is 1-2 years
5. One machine for multiple purposes; precision can be adjusted
6. Fully automatic intelligent control
7. The shell has a service life of 5-10 years, low maintenance and operation costs, and no consumables;
8. It can be installed vertically/horizontally/wall-mounted, which significantly saves installation space.
Our products are sold all over the world, you can rest assured.
