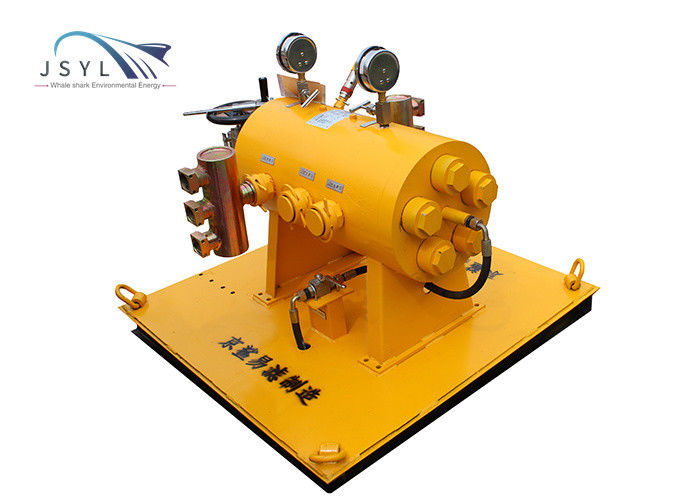

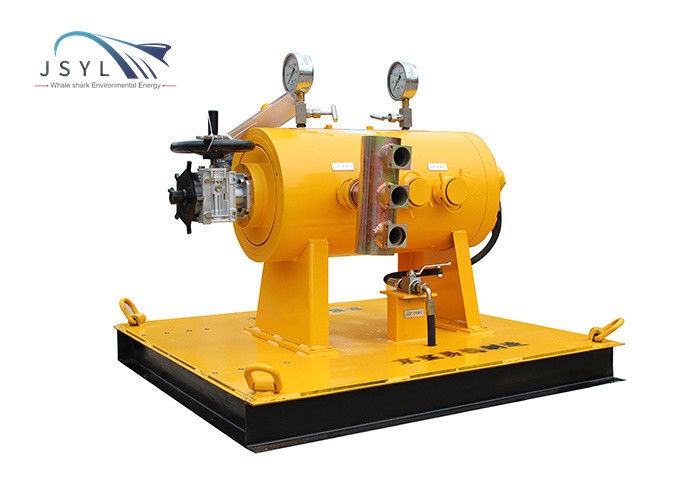

Manual mine high pressure backwash filter station
Introduce:
The equipment can meet the requirements of system operation and the cleanliness of the hydraulic fluid in the next process, and can also be used to protect downstream key equipment from particle blockage, abrasion or fouling, improve the operating efficiency and service life of key equipment, and ensure the safe operation of the system. The machine can continuously filter on-line, backflush and discharge the sewage without stopping; continuous flow; high precision; large effective area; high pressure resistance and other advantages.
Applicable scope/field:
It is mainly used for the filtration of emulsion and emulsified oil of hydraulic supports. The emulsion tank and hydraulic pump are used together as the first-stage filter at the outlet of the pumping station to protect the supports and hydraulic equipment for coal mining.
PRODUCT PARAMETER | |||
Specifications | Equipment parameters | Specifications | Equipment parameters |
Equipment model | JSYL-GDX-SD-KJ51/DN50 (Double in and double out) |
Single machine flow |
3000L/Min |
Shell selection | alloy steel | Rated pressure | 31.5-50MPa |
Backwash components |
304 stainless steel
|
Number of filter elements |
A single unit comes standard with 7 high-pressure filter elements
|
Filter element specification | JSYL-GL-25-600-φ110 | Filtration accuracy | 10μm/25μm/40μm/60μm/100μm |
Pressure gauge | Seismic pressure gauge | Filler replenishment cycle | Replenish once every three months/half a year |
Operation mode | Manual mechanical operation | Filter element design | Quick plug-in installation |
Equipment power supply
|
Voltage 127V | Installation method | Horizontal installation |
Features:
The same equipment can achieve three filtration precisions of coarse, medium and fine; the liquid enters the body through the inlet for filtration, and the impurities are deposited on the stainless steel filter screen. When the inlet pressure and outlet pressure reach the set value; manually open the drain valve and turn the hand wheel of the reducer, As a result, the backwashing node plate rotates 360 degrees, and the high-pressure filter element is sequentially backwashed, and the online backwashing will not stop and flow continuously.
